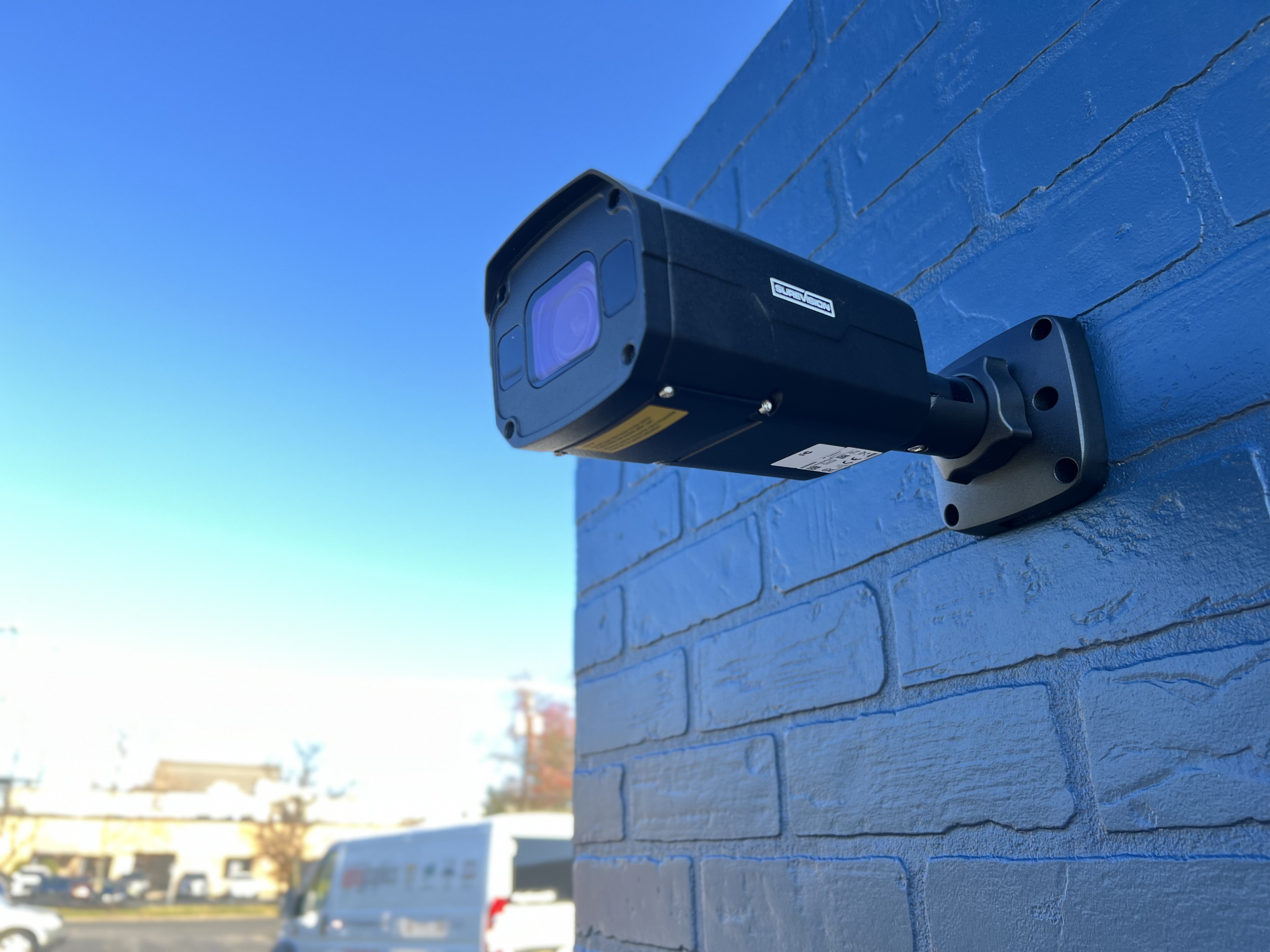

4K Ultra High Definition Bullet Camera with Motor Lens
Capturing Exceptional Detail Clarity
Experience the next level of surveillance with our industry-leading 4K Ultra High Definition Bullet Camera with Motorized Lens. Designed for homeowners and businesses alike, this professional-grade camera delivers unrivaled image quality and advanced features for optimal security.
Drive Your Security to New Heights with 4K Clarity
Imagine having the power to zoom in on objects over 100ft away while maintaining stunning 4K detail. Our motorized adjustable lens offers you unparalleled flexibility, allowing you to focus on specific areas of interest with ease. Whether you need to monitor entrances, parking lots, or expansive properties, this camera ensures you never miss a detail.
Unveil the Unseen – Exceptional Night Vision
When darkness falls, trust in our cutting-edge night vision technology. With an impressive range of up to 164ft, our camera leverages infrared capabilities to deliver crystal-clear images even in the darkest of environments. Experience true peace of mind, knowing that your property is under constant surveillance, day or night.
Intelligent Motion Detection – Intelligent Alerts
Traditional motion detection can be frustrating, triggering unnecessary notifications from moving tree branches or passing animals. With our Ultra Motion Detection (UMD) feature, we've taken surveillance a step further. Focusing exclusively on humans and vehicles, rest assured that you'll receive accurate alerts for truly important events. Instant notifications can be sent directly to your smartphone or tablet, keeping you informed and in control.
Advanced Technology for Superior Performance
We believe in offering nothing but the best, which is why our 4K Ultra High Definition Bullet Camera comes packed with advanced technology to enhance your security system.
Combat Glare and Enhance Clarity with WDR
Intense lighting can often result in washed-out or dimmed images, compromising the effectiveness of your surveillance system. Not anymore. Our camera utilizes Wide Dynamic Range (WDR) technology to combat glare and effortlessly capture balanced, crisp images even in challenging lighting conditions. Experience the confidence of knowing that every detail is perfectly captured.
H.265 – Efficient Video Compression for Extended Storage
Don't worry about running out of storage space. Our camera employs the latest H.265 high video compression technology, allowing for extended video storage time without compromising on quality. Save valuable time and resources by maximizing your video storage capabilities.
Easy Setup and Uncompromised Power
We understand the value of simplicity, which is why our camera is designed for easy installation. With built-in Power over Ethernet (PoE), enjoy a seamless plug and play setup that simplifies your security system. Say goodbye to the hassle of multiple cables running through your property, and say hello to effortless surveillance.
Want to learn more about our top rated security systems? Talk to us at 888.653.2288.
*Always use SureVision cameras with SureVision NVR units for full-featured use and functionality.
Looking for a complete IP camera system?
Check out our Green Line Series
IP Security Camera Systems.
Looking for a network video recorder for this camera?
Check out our compatible
Green Line Network
Video Recorders.
CAMERA FEATURES
Technical Specification | |||||||
---|---|---|---|---|---|---|---|
Camera | |||||||
Sensor | 1/2.8", 8.0 megapixel, progressive scan, CMOS | ||||||
Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
2.8 | 86.9 | 34.8 | 17.4 | 8.7 | |||
12 | 372.4 | 149.0 | 74.5 | 37.2 | |||
Angle of View (H) | 107.4°~ 29.2° | ||||||
Angle of View (V) | 54.2°~ 16.3° | ||||||
Angle of View (O) | 111.0°~33.1° | ||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on |
||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||
Digital Noise Reduction | 2D/3D DNR | ||||||
S/N | >56 dB | ||||||
IR Range | Up to 50m (164ft) IR range | ||||||
Wavelength | 850nm | ||||||
IR On/Off Control | Auto/Manual | ||||||
Defog | Digital Defog | ||||||
WDR | 120dB | ||||||
Video | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||||
Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||
OSD | Up to 8 OSDs | ||||||
Privacy Mask | Up to 4 areas | ||||||
ROI | Up to 8 areas | ||||||
Motion Detection | Up to 4 areas | ||||||
Image | |||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Smart IR | Support | ||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
Dewarping | Supported | ||||||
HLC | Supported | ||||||
BLC | Supported | ||||||
Audio | |||||||
Audio Compression | G.711 | ||||||
Two-way audio | Supported | ||||||
Suppression | Supported | ||||||
Sampling Rate | 8KHZ | ||||||
Storage | |||||||
Edge Storage | Micro SD, up to 256GB | ||||||
Network Storage | ANR | ||||||
Network | |||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
Client | EZStation EZView EZLive |
||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
Interface | |||||||
Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
Alarm I/O | 1/1 | ||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
Certifications | |||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
||||||
General | |||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
Power consumption: Max 10.5W | |||||||
Dimensions (L × W × H) | 245 × 86 × 72mm (9.6" × 3.4" × 2.8") | ||||||
Net Weight | 0.92kg (2.03lb) | ||||||
Material | Metal | ||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Surge Protection | 6KV | ||||||
Ingress Protection | IP67 | ||||||
Vandal Resistant | IK10 | ||||||
Reset Button | N/A |
CAMERA FEATURES
- 8 Megapixel IP Camera (3840×2160)
- 2.8-12mm 4x Motorized Adjustable Lens
- Up to 164ft Infrared Night Vision
- Starlight - low light performance
- H.265 Video Compression
- Weatherproof - Indoor/Outdoor (IP67)
- Wide Dynamic Range (120dB)
- Power Over Ethernet - PoE
- Measurement: 9.6" L x 3.4" W X 2.8" H
Approximate Distances:
Identify (Up to 28-122ft)
Recognize (Up to 57-244ft)
Detect (Up to 285-1221ft)
