Outdoor Security Camera for Homes and Businesses

Step up your security game with this 4K Ultra HD Dome Security Camera with a Motorized Zoom Lens. This advanced surveillance device is not just another security camera; it has been engineered to perfection. With an impressive 8 megapixel (4K) ultra-high-definition infrared camera, you can expect absolutely clear video footage, even at night.

Equipped with Starlight technology and Wide Dynamic Range (WDR), the camera can deliver vibrant and glare-free images even in low light conditions. Its H.265 high video compression technology ensures ample video storage time, making it super-efficient.

Advanced Motion Detection for Accurate Alerts

One of the standout features of this security camera is the Smart Motion Detection (SMD). This technology focuses specifically on human or vehicle movement, minimizing false alarms while perfectly catching all worthwhile events. The notifications are immediately sent to your smartphone or tablet, making sure you're always in the loop.

Easy Installation and Endless Flexibility

Installation problems are a thing of the past with this camera's built-in Power over Ethernet (PoE) feature, promising a simple plug and play set up. The motorized adjustable lens will let you capture the perfect angle for monitoring objects, whether they are near or far. This versatility, combined with a weatherproof housing, makes the camera suitable for both indoor and outdoor use.

*IP cameras intended to be used with one of our dedicated NVR (Network Video Recorders) for full feature use and easy plug and play functionality. Purchase one of our industry leading IP NVR Recorders for a Superior Surveillance Solution!

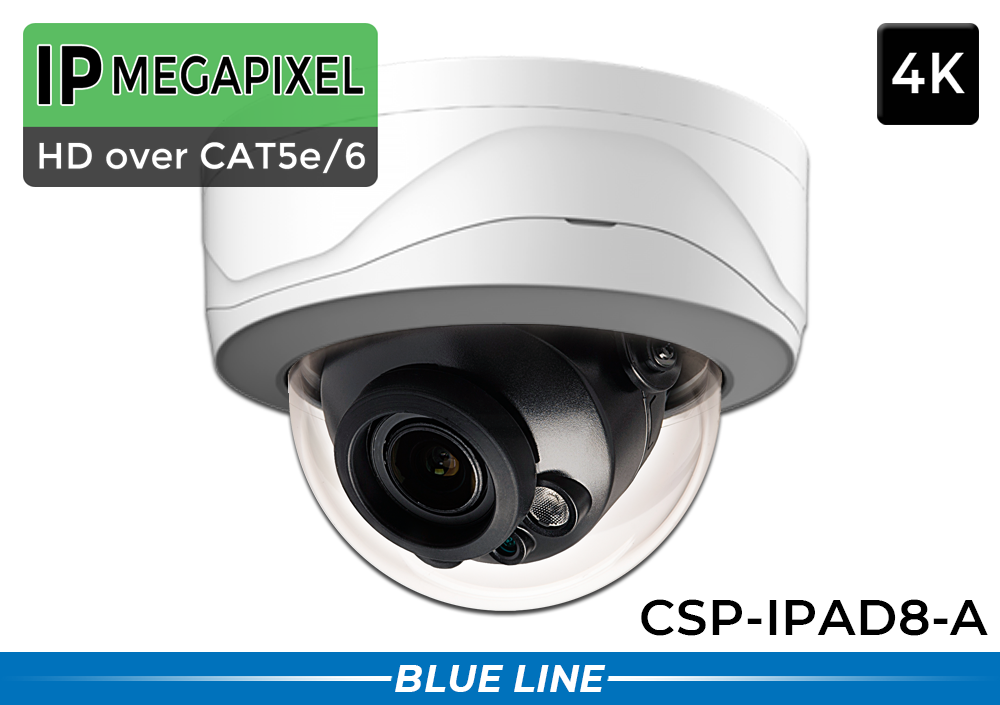

4K Ultra HD 8 MP Indoor/Outdoor Dome Security Camera

4K Security Camera Monitoring Images

Professional Grade Security camera by CCTV security pros

Looking for a complete IP camera system?

Check out our Blue Line Series
IP Security Camera Systems.

SHOP NOW

Looking for a network video recorder for this camera?

Check out our compatible
Blue Line Network
Video Recorders.

SHOP NOW

TECHNICAL SPECIFICATIONS
Camera
Image Sensor	1/2.8" 8 Megapixel progressive CMOS
Max. Resolution	3840 (H) × 2160 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.007 Lux@F1.5 (Color, 30IRE) 0.0007 Lux@F1.5 (B/W, 30IRE) 0 Lux (Illuminator on)
S/N Ratio	56 dB
Illumination Distance	40 m (131.2 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	2 (IR LED)
Pan/Tilt/Rotation Range	Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355°
Lens
Lens Type	Motorized vari-focal
Mount Type	φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Field of View	Horizontal: 113°–31° Vertical: 58°–17° Diagonal: 138°–36°
Iris Type	Fixed
Close Focus Distance	0.8 m (2.6 ft)
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	85.3 m (279.9 ft)	34.1 m (111.9 ft)	17.0 m (55.8 ft)	8.5 m (27.9 ft)
	T	280.0 m (918.6 ft)	112.0 m (367.5 ft)	56.0 m	28.0 m
Professional, intelligent
Perimeter Protection	Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+/ Smart H.264+
Video Frame Rate	Main stream: 3840 × 2160 @(1–25/30 fps when AI function disabled) sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps) third stream: 1920 × 1080 @(1–25/30 fps)
Stream Capability	3 streams
Resolution	8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
Mirror	Yes
Privacy Masking	4 areas
Audio
Audio Compression	G.711a; G.711Mu; G726
Alarm
Alarm Event	- ZAS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception -ZS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; voltage detection; defocus detection; SMD; safety exception
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security	Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host	20 (Total bandwidth: 72 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser	IE: IE8; IE9; IE11 Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certification
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input	1 channel (RCA port) (Only - ZAS supports)
Audio Output	1 channel (RCA port) (Only - ZAS supports)
Alarm Input	1 channel in: 5mA 3V–5V DC (Only - ZAS supports)
Alarm Output	1 channel out: 300mA 12V DC (Only - ZAS supports)
Power
Power Supply	12V DC/PoE (802.3af)
Power Consumption	Basic power consumption: 2.7W (12V DC); 3.3W (PoE) Max. power consumption (WDR + H.265 + IR LED intensity): 6.8W (12V DC); 8.2W (PoE)
Environment
Operating Conditions	–30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage Conditions	–40°C to +60°C (–40°F to +140°F)
Protection Grade	IP67; IK10
Structure
Casing	Metal
Dimensions	88.9 mm × Φ122 mm (3.5" × Φ4.8")
Net Weight	492 g (1.1 lb)
Gross Weight	663 g (1.5 lb)

CAMERA FEATURES

8 Megapixel IP Camera (3840×2160)
Smart Motion Detection (SMD)
2.7-13.5mm Motorized Adjustable Lens
Up to 130ft Infrared Night Vision
Starlight - low light performance
H.265 Video Compression
Weatherproof, Vandalproof (IP67, IK10)
Wide Dynamic Range (120dB)
Power Over Ethernet - PoE
Measurement: 3.5" H x 4.8" D

Approximate Distances:
Identify (Up to 28-92ft)
Recognize (Up to 56-184ft)
Detect (Up to 280-919ft)
