Complete 8 Camera IP System | 4K Security Cameras

Unmatched Quality and Reliability

Ensure Comprehensive Surveillance for Your Business or Home

Experience video monitoring at its best with the SureVision 8 camera complete system package. This professional-grade system is designed to offer unmatched quality, function, and reliability. With the industry-leading SureVision NVR, you can trust that your property will be protected day and night. Whether you are a beginner or a professional, the simple and easy setup process makes this system perfect for business or homeowner looking for the best professional solution.

Cutting-Edge Features for Maximum Security

This complete IP security camera system includes everything you need to monitor your surroundings effectively. With 24/7 recording, motion recording, object masking, mobile alerts, and audio capabilities, the SureVision IP NVR ensures comprehensive surveillance for your business or home. Stay informed about important events with instant motion alerts sent directly to your smartphone or tablet. With crystal clear ultra high definition 4K surveillance, you can trust that every detail will be captured with clarity.

Hassle-Free Installation and Support

Setting up this complete high-definition IP security camera system is simple and easy. Each package includes a quick start guide, providing simple instructions for installation. Our live USA-based Technical Support is available Monday through Friday to answer any questions you may have and assist you. We are committed to ensuring a smooth installation process, providing peace of mind with our 3-Year Warranty, Free USA Technical Support, and 100% Money Back Guarantee.

Crystal Clear Ultra HD Surveillance

4K IP Security Camera with Night Vision

Included in this package is the SureVision 8-megapixel (4K) ultra high-definition infrared vandal dome style camera. These domes can be used both indoor and outdoor. This powerful camera features a fixed 110-degree extra wide-angle lens, capturing a wide field of view for optimal surveillance. Its impressive night vision capability of up to 100ft ensures that your property will be protected day and night. The discreet and low-profile dome design makes it suitable for both indoor and outdoor use.

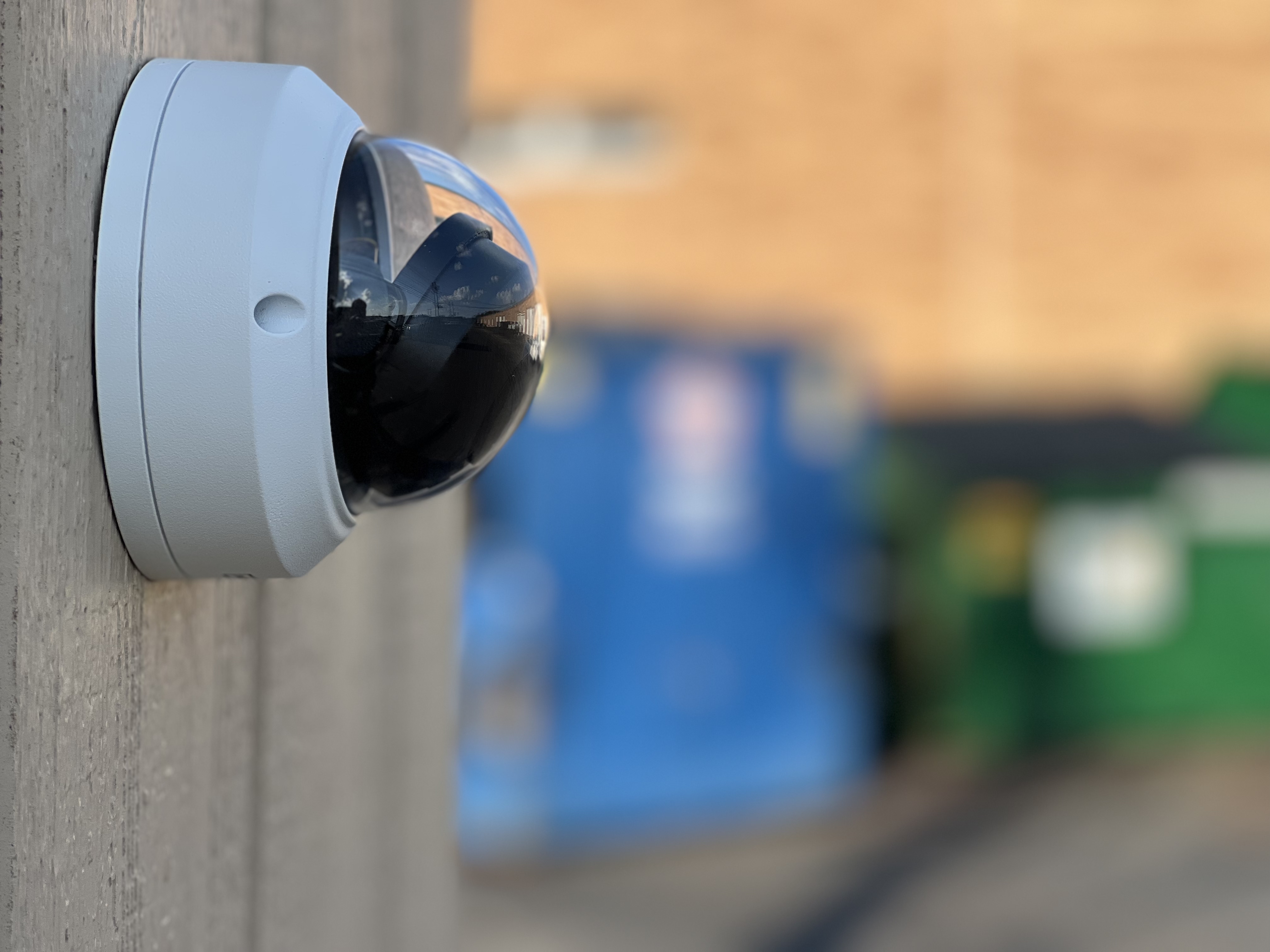

Weather and Vandal Dome

The vandal-proof design of the dome camera ensures maximum durability and security. Whether mounted on a ceiling or wall, the 3-axis lens allows for flexible positioning. Capture crystal clear images with the color at night technology that provides enhanced visibility in low light areas. The advanced WDR feature combats glare from intense lighting, while the H.265 high video compression technology allows for extended video storage time.

Protect What Matters Most

The SureVision 8 Camera System makes the perfect business security camera system. This advanced surveillance solution offers unparalleled image quality, ensuring that every detail is captured with precision. With its wide-angle lens, impressive night vision, and advanced features, you can rely on this system to provide the utmost security for your property.

Advanced Motion Detection and Instant Alerts

AI Ultra Motion Detection

The SureVision dome camera goes above and beyond with its AI-powered Ultra Motion Detection (UMD) feature. By focusing specifically on humans and vehicles, this intelligent feature eliminates any unwanted alerts, ensuring you receive only the most relevant notifications. Stay informed about important events no matter where you are – instant motion alerts can be sent directly to your smartphone or tablet.

Instant Cell Phone Mobile Alerts

With advanced motion detection capabilities, you can trust that the SureVision NVR system will keep you updated on any suspicious activity. Receive instant alerts straight to your device, ensuring quick response times and proactive security measures. Whether you're at work, on vacation, or simply away from home, stay connected and in control with the advanced motion detection feature.

Peace of Mind Guaranteed

Invest in the Complete 8 Camera SureVision NVR System for peace of mind. With its advanced motion detection and instant alerts, you can trust that your property is always under surveillance, even when you're not physically present. Ensure the safety of your loved ones and the security of your assets with this state-of-the-art security system.

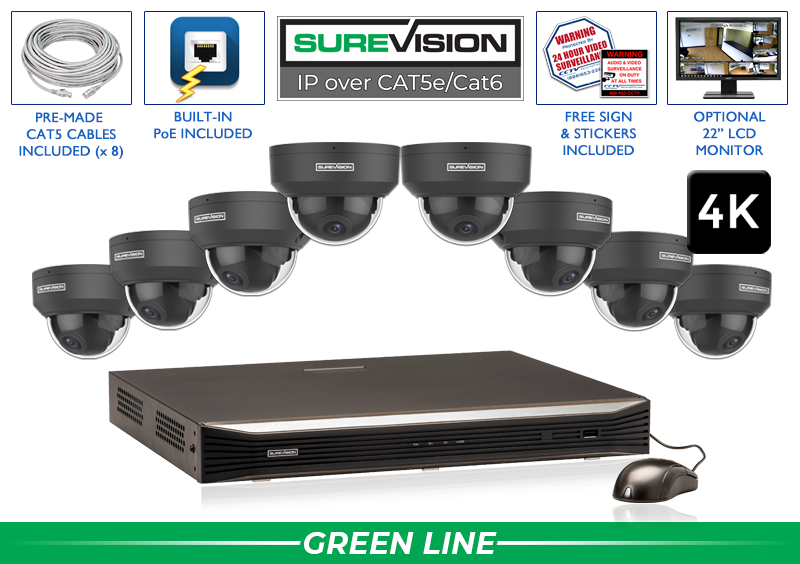

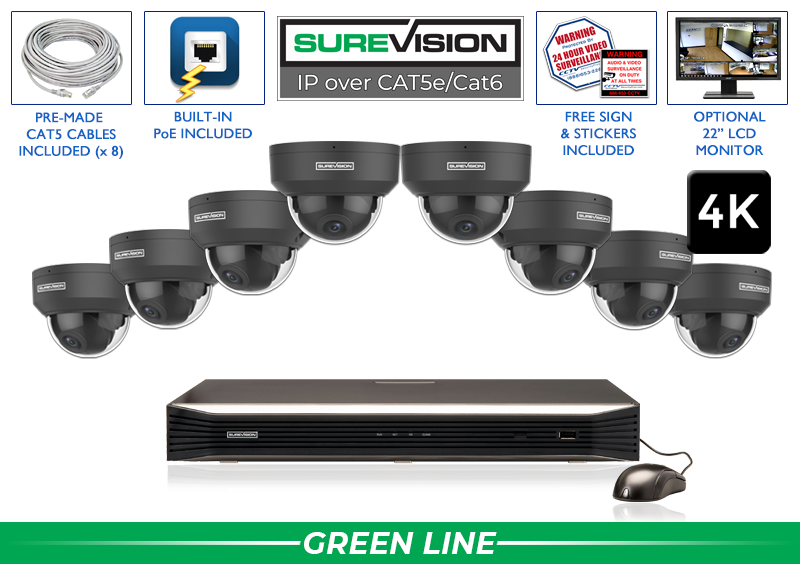

This Complete IP Security Camera System includes:

(1) 16 Channel Network Video Recorder (Free Upgrade)
(1) 2 Terabyte Surveillance Grade Hard Drive (installed)
(8) 4K IP Infrared Indoor/Outdoor Vandal Dome Security Cameras with 100 Foot Night Vision and Microphone
(8) 100 Foot CAT5 Cable
High Definition LCD Monitor is OPTIONAL
Quick Start Guide
Free Remote Viewing Software and Apps
Video Surveillance Aluminum Sign

Security Camera Specifications:

Technical Specification
Camera
Sensor	1/3", 8.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	2.8mm	84		33.6	16.8		8.4

Angle of View (H)	112.7°
Angle of View (V)	60.1°
Angle of View (D)	146.5°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~68°			Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.05 Lux (F2.0, AGC ON) 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>56dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline Profile, Main Profile
Frame Rate	Main Stream:8MP (38402160): Max. 20 fps; 5MP (25921944): Max. 30 fps; 5MP(29441656): Max. 30 fps; 4MP(25601440): Max. 30 fps; 2MP(19201080): Max. 30 fps Sub Stream:720P (1280720): Max. 20 fps Third Stream:D1 (720*576): Max. 20 fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
Interface
Network	10/100M Base-TX Ethernet
Built-In Mic	Supported
General
Power	DC12V±25%, PoE (IEEE802.3 af)
Power	Power consumption: Max 4.5w
Dimensions (Ø x H)	Φ108.7 x 83mm (Ø4.3" x 3.3")
Weight	0.37kg (0.82lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10

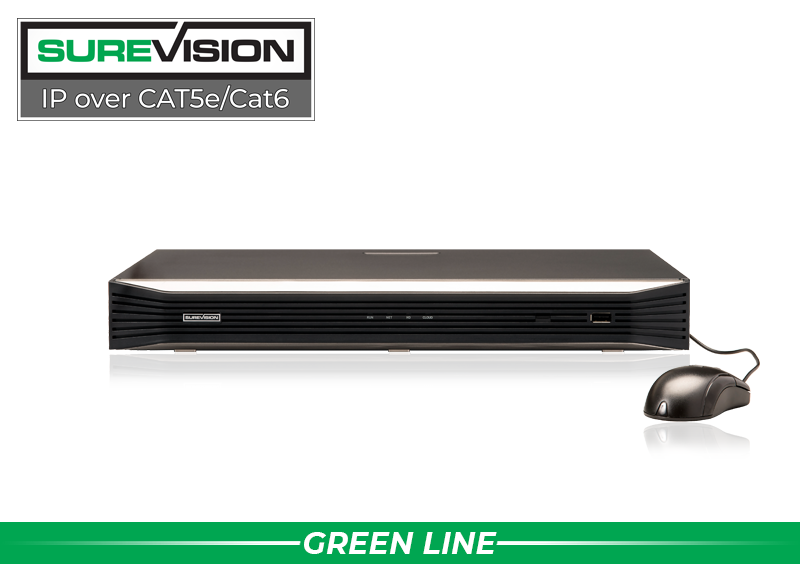

About our SUREVISION IP Camera Network Video Recorder:

Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.

SUREVISION "Green Line" Video Surveillance Recorder Highlights:

Remote Viewing on PC, Cell Phone, and Tablet
Industry Latest and Greatest
Up to 4K Recording and Playback
Motion 24/7 or on Motion Detection Mode
Quick Start Guide Included for Easy Set Up
3 Year Warranty
ONVIF Compliant
Free Unlimited USA Support

Technical Specification
Video/Audio Input
IP Video Input	16-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	320Mbps
Outgoing Bandwidth	160Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output	HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Recording Resolution	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Synchronous Playback	16-ch
Live View Display	1/4/6/8/9/16
Corridor Mode Screen	3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot, up to D1 resolution
Decoding
Decoding Format	Ultra 265, H.265, H.264
Live View/Playback	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Hard Disk
SATA	2 SATA interfaces
Capacity	up to 20TB for each HDD
eSATA	NA
Disk Group	Support
Smart
VCA Detection by Camera	Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting	People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera	Total 8-ch
General Alarm
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface	1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface	Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS232	NA
RS485	1
Alarm In	8-ch
Alarm Out	2-ch
PoE
Interface	16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port Max 240W in total
Supported Standard	IEEE 802.3af/at
General
Power Supply	100~240V AC Power Consumption: ≤ 20W (without HDD)
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
Weight (without HDD)	≤2.6Kg (5.73lb)
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

16 CHANNEL NVR

*Free Upgrade to 16ch Recorder!

4K Ultra High Definition
16 PoE Camera Inputs
Remote Viewing – No Monthly Fees
H.265 High Video Compression
320 Mbps Incoming Bandwidth
HDMI and VGA Display Output
2 Hard Drive Bays

SECURITY CAMERAS

8 Megapixel IP Camera (3840×2160)
2.8mm Lens (110° Wide Angle View)
Up to 100ft Infrared Night Vision
Starlight - low light performance
Built-in Microphone
H.265 Video Compression
Weatherproof, Vandalproof (IP67, IK10)
Wide Dynamic Range (120dB)
Power Over Ethernet - PoE
Measurement: 3.2" H x 4.3" D

Approximate Distances:
Identify (Up to 28ft)
Recognize (Up to 56ft)
Detect (Up to 276ft)
