8 4K Active Deterrent Cameras - 16 Channel NVR - IP Security System / 8IPSB8-B-N

$3,699.99 after 20% promo after 20% promo $2,959.99
(You save $740.00)
Model: SV-8IPSB8-B-N
4k Bullet Cameras - 16 Channel NVR - Complete System

Select your options:

superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100
Ask a question

SureVision Camera Features Video

SureVision NVR Features Video









This is video monitoring at its best.  This is SureVision.

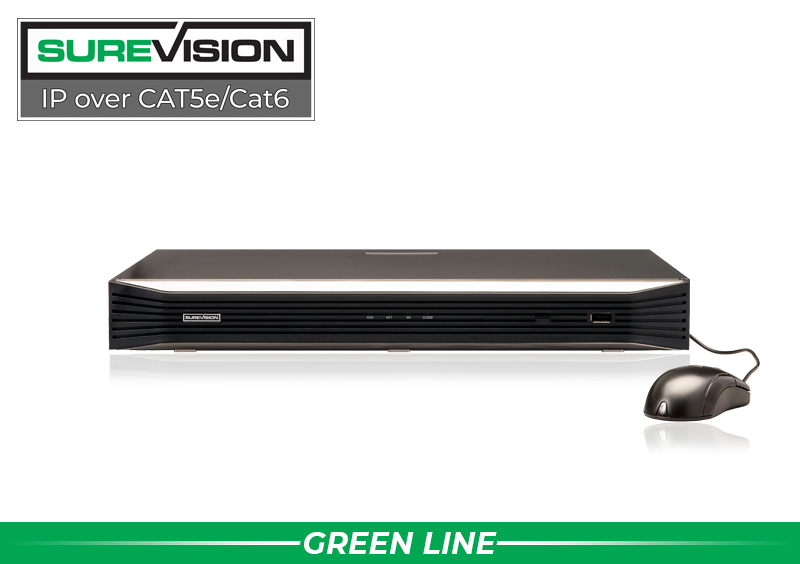

This complete system package comes with our industry leading SureVision NVR.  This professional grade NVR unit was designed to be simple and easy to setup while offering unmatched quality, function and reliability.  The NVR comes equipped with all of the latest features such as 24/7 recording, motion recording, object masking, mobile alerts, audio and much more.  You can easily view and receive instant motion alerts from your cameras remotely on any smartphone, tablet or computer using our free software and mobile apps.  Built-in PoE (power over ethernet) makes this unit ideal for simple plug and play setup.  All SureVision NVR units have extended PoE allowing you to cable over 800ft away!  You can expect the very best surveillance for your business or home with this top of the line NVR.

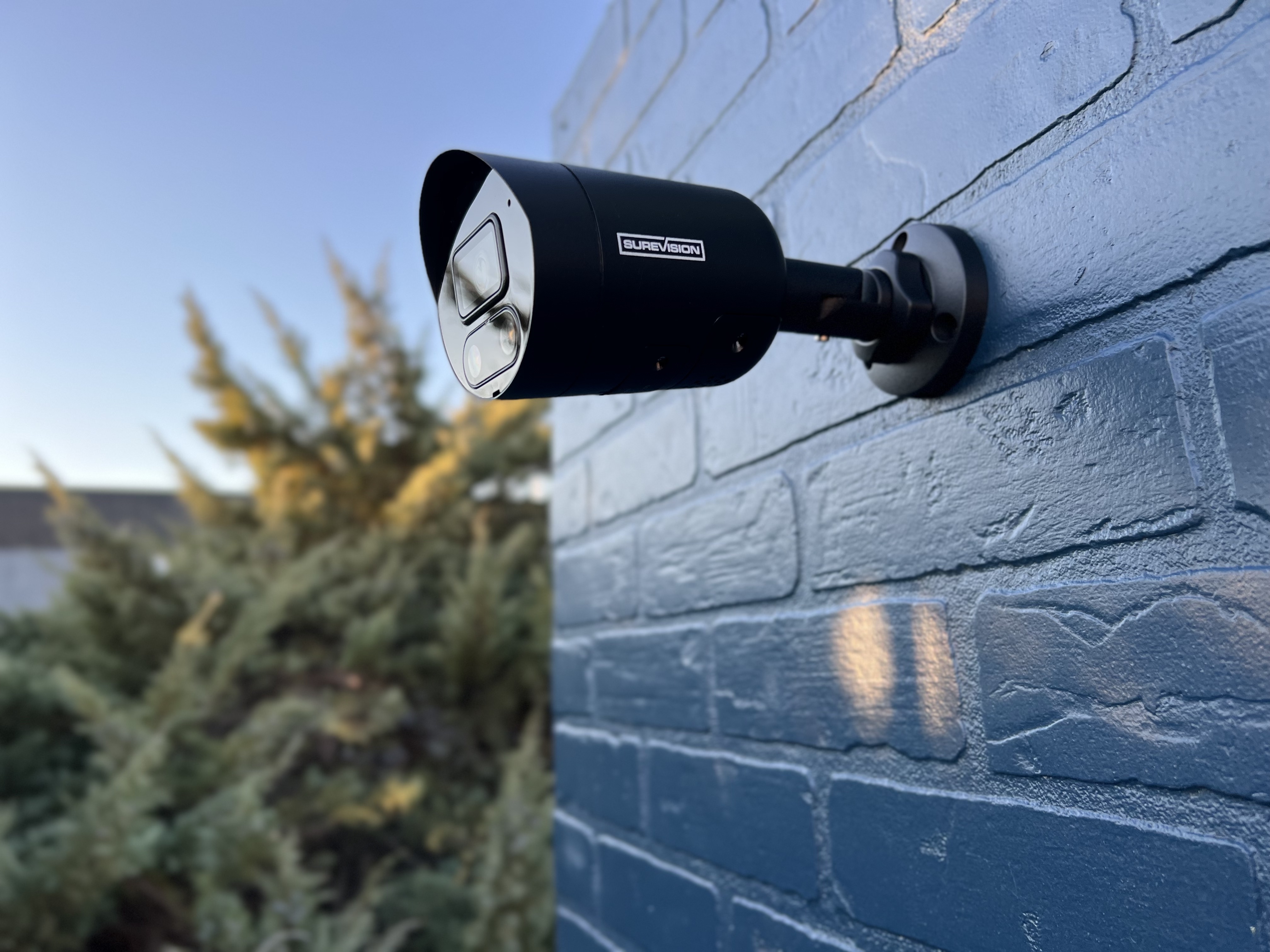

This complete security camera system package includes our SureVision 4K (8 megapixel) ultra high definition bullet style camera with 110 degree extra wide-angle lens. This next generation security camera comes loaded with high-end features. The camera is equipped with both traditional infrared night vision up to 100ft and LED spotlight mode for “full” color at night when needed. You can adjust the settings dependent upon your specific application and what type of night illumination you prefer. The camera also has a built-in microphone and speaker for 2-way audio functionality from your smartphone using our mobile app. This is an active deterrence camera meaning that it can activate a loud siren with LED strobe lights when motion is activated to deter any potential threats. The camera has an AI feature called Ultra Motion Detection (UMD) that focuses specifically on humans and/or vehicles to produce the most accurate motion alerts – while eliminating any unwanted alerts! These notifications can instantly be sent to your smartphone or tablet so you never miss an important event. Other advanced features of this camera include WDR used to combat any glare from intense lighting as well as the latest H.265 high video compression technology for extended video storage time. This well-designed camera is an excellent choice for customers seeking exceptional image quality with advanced features.

This Complete High Definition IP Security Camera System comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.

Installation of our IP camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.

*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects



This Complete HD Security Camera System includes:

  • (1) 16 Channel (FREE UPGRADE DURING PROMO) SUREVISION HD Network Video Recorder
  • (1) 2 Terabyte Surveillance Grade Hard Drive (installed)
  • (8) 4K IP Infrared Indoor/Outdoor Bullet Security Cameras with 2-way Audio
  • (8) 100 Foot CAT5 Cable
  • High Definition LCD Monitor is OPTIONAL
  • Quick Start Guide
  • Free Remote Viewing Software and Apps
  • Video Surveillance Aluminum Sign




Security Camera Specifications:





Camera
Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 84.0 33.6 16.8 8.4

Angle of View (H) 112.4°
Angle of View (V) 60.1°
Angle of View (O) 146.1°
Adjustment angle Pan: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >56dB
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Supported
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Built-in Speaker Supported
Alarm Light Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 10.5W
Dimensions (L × W × H) 191× 75 × 74mm (7.5” × 3.0” × 2.9”)
Net Weight 0.41kg (0.90lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button Supported




About our SUREVISION IP Camera Network Video Recorder:

Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs.  Our SUREVISION IP NVR line is ONVIF compatible.  SUREVISION is our latest and greatest line of IP Cameras.  Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder.  View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.

SUREVISION "Green Line" Video Surveillance Recorder Highlights:

  • Remote Viewing on PC, Cell Phone, and Tablet
  • Industry Latest and Greatest
  • Up to 4K Recording and Playback
  • Motion 24/7 or on Motion Detection Mode
  • Quick Start Guide Included for Easy Set Up
  • 3 Year Warranty
  • ONVIF Compliant
  • Free Unlimited USA Support




Technical Specification
Video/Audio Input
IP Video Input 16-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 160Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output

HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60

VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Recording Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch
Live View Display 1/4/6/8/9/16
Corridor Mode Screen 3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Decoding
Decoding Format Ultra 265, H.265, H.264
Live View/Playback 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Hard Disk
SATA 2 SATA interfaces
Capacity up to 20TB for each HDD
eSATA NA
Disk Group Support
Smart
VCA Detection by Camera Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera Total 8-ch
General Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS232 NA
RS485 1
Alarm In 8-ch
Alarm Out 2-ch
PoE
Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 240W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 100~240V AC
Power Consumption: ≤ 20W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
Weight (without HDD) ≤2.6Kg (5.73lb)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B





16 CHANNEL NVR
*Free Upgrade to 16ch Recorder!
  • 4K Ultra High Definition
  • 16 PoE Camera Inputs
  • Remote Viewing – No Monthly Fees
  • H.265 High Video Compression
  • 320 Mbps Incoming Bandwidth
  • HDMI and VGA Display Output
  • 2 Hard Drive Bays
SECURITY CAMERAS
  • 4K IP Camera (2688×1520)
  • 2.8mm Lens (110° Wide Angle View)
  • Up to 100ft Infrared Night Vision
  • White Light - Full Color at Night
  • 2 Way Audio
  • H.265 Video Compression
  • Weatherproof - Indoor/Outdoor (IP67)
  • Wide Dynamic Range - WDR (120dB)
  • Power Over Ethernet - PoE
  • Measurement: 7.5" L x 3.0" W x 2.9"
Approximate Distances:
Identify (Up to 27ft)
Recognize (Up to 55ft)
Detect (Up to 275ft)
