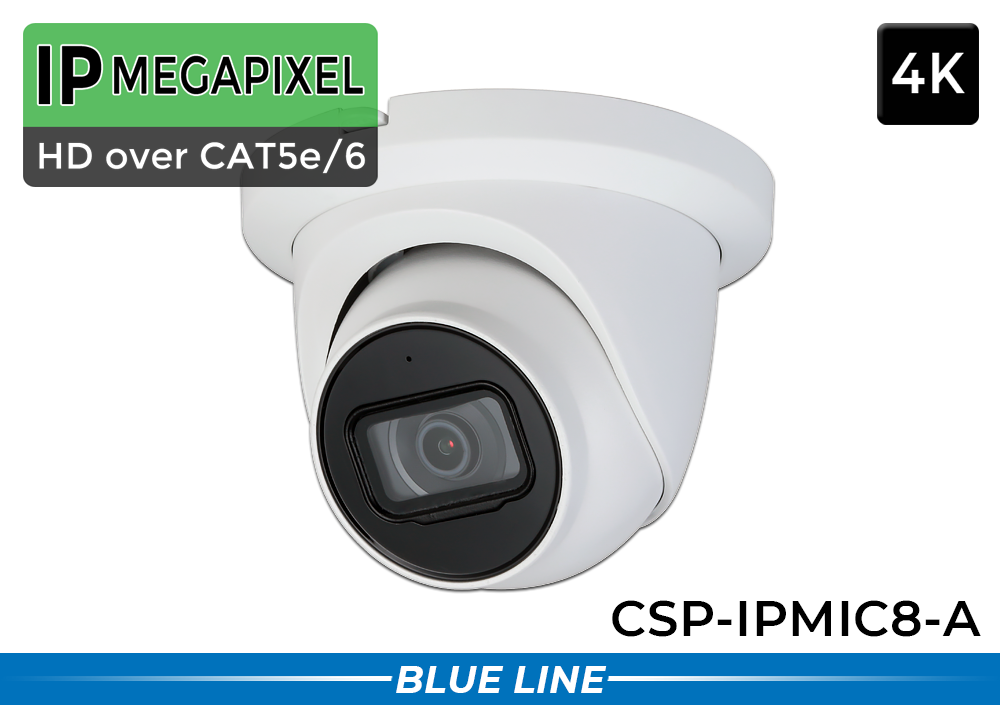

4K IP Dome Security Camera with Built-in Microphone / CSP-IPMIC8-A

$299.99 after 20% promo after 20% promo $239.99
(You save $60.00)
Model: CSP-IPMIC8-A
Dome Security Camera with Microphone | 4K Camera

Select your options:

superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100

AI Security Cameras with Motion Detection



Unmatched Clarity with 4K Security Cameras

Experience Every Detail: This isn't just any security camera. Our 4K IP Security Camera with Microphone brings the smallest details to your screen with unbeatable 8MP clarity. Whether it's a leaf fluttering in the wind or the faint smile of a loved one returning home, nothing escapes its gaze. The 110-degree wide-angle lens ensures you capture more of the scene, making it perfect for monitoring large areas with fewer cameras.

Revolutionary Night Vision & Audio

See in the Dark, Hear Every Sound: As the sun sets, our camera's powerful night vision illuminates up to 100ft, turning night into day. Coupled with Starlight technology, it reveals vivid, colorful images even in low-light conditions. But we didn't stop with just visuals; the built-in microphone captures every sound, making your footage as informative as it is clear.

Smart and Secure

Intelligent Alerts, Simplified Connectivity: Say goodbye to false alarms. Our cutting-edge Smart Motion Detection (SMD) technology distinguishes between humans and vehicles from other movements, ensuring you're only alerted to what truly matters. Adding to the convenience is the built-in PoE, facilitating easy installation without the clutter of extra cables. Whether indoors or outdoors, this camera is engineered for precision and ease.

Want to learn more about our top rated security systems? Talk to us at 888.653.2288.



*IP cameras intended to be used with one of our dedicated NVR (Network Video Recorders) for full feature use and easy plug and play functionality.  Purchase one of our industry leading IP NVR Recorders for a Superior Surveillance Solution!

Security Cameras with Color Night VIsion

Security Camera System with Motion Detection

4K Security Cameras and Systems

Professional Security Camera Systems

Security Camera Junction Box

Shop Blue Line Series Cameras

Looking for a complete IP camera system?

Check out our Blue Line Series
IP Security Camera Systems.

SHOP NOW

Shop Blue Line Network Video Recorders

Looking for a network video recorder for this camera?

Check out our compatible
Blue Line Network
Video Recorders.

SHOP NOW

Technical Specification

Camera
Image Sensor 1/2.8” 8 Megapixel progressive CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.007 Lux@F1.4 (Color, 30IRE) 0.0007 Lux@F1.4 (B/W, 30IRE) 0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm 3.6 mm
Max. Aperture F1.4
Field of View 2.8 mm: Horizontal 108° × Vertical 58° × Diagonal 127°
3.6 mm: Horizontal 85° × Vertical 45° × Diagonal 100°
Iris Type Fixed
Close Focus Distance 2.8 mm: 1.4 m (4.6 ft)
3.6 mm: 2.4 m (7.9 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 85.5 m (280.5 ft) 34.2 m (112.2 ft) 17.1 m (56.1 ft) 8.6 m (28.2 ft)
3.6 mm 110.3 m (361.9 ft) 44.1 m (144.7 ft) 22.1 m (72.5 ft) 11.0 m (36.1 ft)
Professional, intelligent
Perimeter Protection Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream: 3840 × 2160 @(1–20 fps by default) 3840 × 2160 @(1–25/30 fps when AI function disabled) sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps) third stream: 1920 × 1080 @(1–25/30 fps)
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G726
Alarm
Alarm Event No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection;SMD; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE: IE8; IE9; IE11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic power consumption: 2.6W (12V DC); 3.3W (PoE) Max. power consumption (WDR + H.265 + IR LED intensity): 6.9W (12V DC); 7.9W (PoE)
Environment
Operating Conditions –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Conditions –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67
Structure
Casing Inner core: Metal
Cover: Metal
Decoration ring: Plastic
Dimensions 99.1 mm × Φ121.9 mm (3.9" × Φ4.8")
Net Weight 500 g (1.1 lb)
Gross Weight 770 g (1.7 lb)


CAMERA FEATURES
  • 8 Megapixel 4K IP Camera (3840×2160)
  • Smart Motion Detection (SMD)
  • Built-in Microphone
  • 2.8mm Lens (110° Wide Angle View)
  • Up to 100ft Infrared Night Vision
  • Starlight - low light performance
  • H.265 Video Compression
  • Weatherproof - Indoor/Outdoor (IP67)
  • Wide Dynamic Range (120dB)
  • Power Over Ethernet - PoE
  • Measurement: 3.9" H x 4.8" D
Approximate Distances:
Identify (Up to 28ft)
Recognize (Up to 56ft)
Detect (Up to 280ft)
