Security Camera System with Network Video Recorder | 8 4K Cameras - 16 Channel NVR / 8IPBE2-N

$2,099.99 after 20% promo after 20% promo $1,679.99
(You save $420.00)
Model: SV-8IPBE2-N
Security Camera Systems | 8 Cameras

Select your options:

superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100
Ask a question

SureVision NVR Features Video



NDAA Compliant Solutions

View your cameras from anywhere using our free apps

IP POE Security Camera System with Network Video Recorder

Unmatched Functionality and Access

Are you in search of a surveillance technology that offers both top-notch functionality and superior user-friendly accessibility? Look no further than the IP Security Camera System with Network Video Recorder | 8 Cameras - 16 Channel NVR / 8IPBE2-N by SureVision. This package combines the industry-leader SureVision NVR with a 24/7 recording feature, motion recording, object masking and mobile alerts. Experience the comfort of receiving instant motion alerts from your cameras on your smartphone, tablet or computer, with the advantage of plug and play setup through built-in PoE (power over ethernet).

Reliable and Exceptional Coverage

This camera system is not just about functionality, it's about exceptional coverage. The package features a 2-megapixel infrared bullet-style camera equipped with a 110 degree extra wide-angle lens and impressive night vision capabilities up to 100ft. Not only does the stylish bullet-style camera appeal aesthetically, but its high-tech features, including a built-in microphone for audio recording, takes user experience to a new level. The camera exhibits unparalleled Ultra Motion Detection (UMD) – a feature that reduces unnecessary alerts by focusing specifically on humans or vehicles. Integrated WDR offsets intense lighting glare and H.265 high video compression technology provides extended video storage time, making this an ideal choice for both indoor and outdoor surveillance.

Installation and Support

The IP Security Camera System with Network Video Recorder | 8 Cameras - 16 Channel NVR / 8IPBE2-N by SureVision is not only a front-runner in technology but comes with complete installation support and a 3 Year Warranty. The package includes a comprehensive step-by-step guide, and live USA based Technical Support from Monday through Friday. The system is NDAA compliant, suitable for installation in government facilities and federally funded projects.

This Complete IP Security Camera System includes:

  • (1) 16 Channel (FREE UPGRADE DURING PROMO) SUREVISION HD Network Video Recorder
  • (1) 2 Terabyte Surveillance Grade Hard Drive (installed)
  • (8) 2MP IP Infrared Indoor/Outdoor Bullet Security Cameras with 100 Foot Night Vision
  • (8) 100ft CAT5e Cables
  • High Definition LCD Monitor is OPTIONAL
  • Quick Start Guide
  • Free Remote Viewing Software and Apps
  • Video Surveillance Aluminum Sign

HOME RUN! Extended PoE for cabling over 800ft with SureVision NVR's



Security Camera Specifications:

Technical Specification
Camera
Sensor 1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 42.0 16.8 8.4 4.2
Angle of view (H) 101.1°
Angle of View (V) 55.3°
Angle of View (O) 111.1°
Adjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.01Lux (F2.0 AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video/Audio
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
Video Bit Rate 128 Kbps~6144 kpbs
9:16 Corridor Mode Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Built-in Mic Supported
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Network
Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client SVStation
SVTools
Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR,NAS(NFS)
Interface
Network 10/100M Base-TX Ethernet
Certifications
Certifications CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
FCC: (FCC 47 CFR part15 B)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max5.0W
Dimensions (Ø x H) 166 × 63 × 62mm (6.5” × 2.5” × 2.5”)
Net Weight 0.39kg (0.86lb))
Material

Graphene + Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Ingress Protection IP67
Reset Button N/A

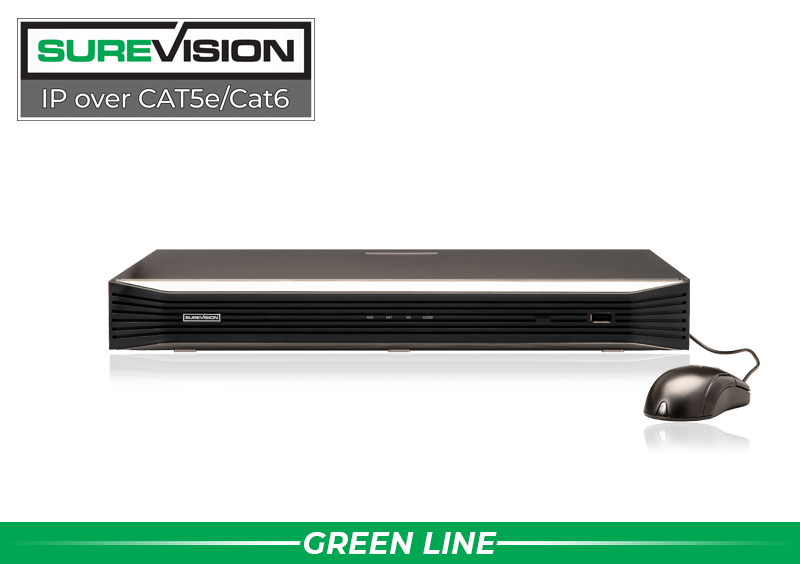

About our SUREVISION IP Camera Network Video Recorder:

Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs.  Our SUREVISION IP NVR line is ONVIF compatible.  SUREVISION is our latest and greatest line of IP Cameras.  Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder.  View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.

SUREVISION "Green Line" Video Surveillance Recorder Highlights:

  • Remote Viewing on PC, Cell Phone, and Tablet
  • Industry Latest and Greatest
  • Up to 4K Recording and Playback
  • Motion 24/7 or on Motion Detection Mode
  • Quick Start Guide Included for Easy Set Up
  • 3 Year Warranty
  • ONVIF Compliant
  • Free Unlimited USA Support



Technical Specification
Video/Audio Input
IP Video Input 16-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 160Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output

HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60

VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Recording Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch
Live View Display 1/4/6/8/9/16
Corridor Mode Screen 3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Decoding
Decoding Format Ultra 265, H.265, H.264
Live View/Playback 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Hard Disk
SATA 2 SATA interfaces
Capacity up to 20TB for each HDD
eSATA NA
Disk Group Support
Smart
VCA Detection by Camera Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera Total 8-ch
General Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS232 NA
RS485 1
Alarm In 8-ch
Alarm Out 2-ch
PoE
Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 240W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 100~240V AC
Power Consumption: ≤ 20W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
Weight (without HDD) ≤2.6Kg (5.73lb)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B





Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • Up to 12 Megapixels resolution recording
  • 2 SATA HDD up to 20 TB
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade



16 CHANNEL NVR
*Free Upgrade to 16ch Recorder!
  • 4K Ultra High Definition
  • 16 PoE Camera Inputs
  • Remote Viewing – No Monthly Fees
  • H.265 High Video Compression
  • 320 Mbps Incoming Bandwidth
  • HDMI and VGA Display Output
  • 2 Hard Drive Bays
SECURITY CAMERAS
  • 2 Megapixel IP Camera (1920x1080)
  • 2.8mm Lens (110° Wide Angle View)
  • Up to 100ft Infrared Night Vision
  • Built-in Microphone
  • H.265 Video Compression
  • Weatherproof (IP67)
  • Wide Dynamic Range (120dB)
  • Power Over Ethernet - PoE
  • Measurement: 2.5" H x 6.5" D

Approximate Distances:
Identify (Up to 14ft)
Recognize (Up to 28ft)
Detect (Up to 138ft)
