Infrared Bullet 32 Camera 8MP (4K) IP Video Recording System / 32IPBA8-N
Capture Crystal Clear Surveillance with Our SureVision NVR
Unmatched Quality and Reliability for Your Peace of Mind
At CCTV Security Pros, we understand the importance of a reliable and high-performance security system for your business or home. That's why we have bundled our Infrared Bullet 32 Camera 8MP (4K) IP Video Recording System with our industry-leading SureVision NVR. Designed to be simple and easy to set up, our professional-grade NVR offers unmatched quality, function, and reliability.
With our SureVision NVR, you can expect top-of-the-line surveillance features, including:
-
24/7 Recording: Never miss a moment with continuous video recording capabilities.
-
Motion Recording: Only capture relevant footage by setting up motion detection.
-
Object Masking: Customize your surveillance area and focus on the areas that matter most.
-
Mobile Alerts: Stay informed with instant motion alerts sent directly to your smartphone, tablet, or computer.
-
Audio Capabilities: Benefit from built-in audio recording for enhanced surveillance coverage.
-
Free Software and Mobile Apps: Monitor and control your cameras remotely, anytime and anywhere.
-
Built-in PoE: Enjoy hassle-free plug-and-play setup with power over ethernet.
-
Extended PoE: Cable your cameras over 800ft away for flexibility in camera placement.

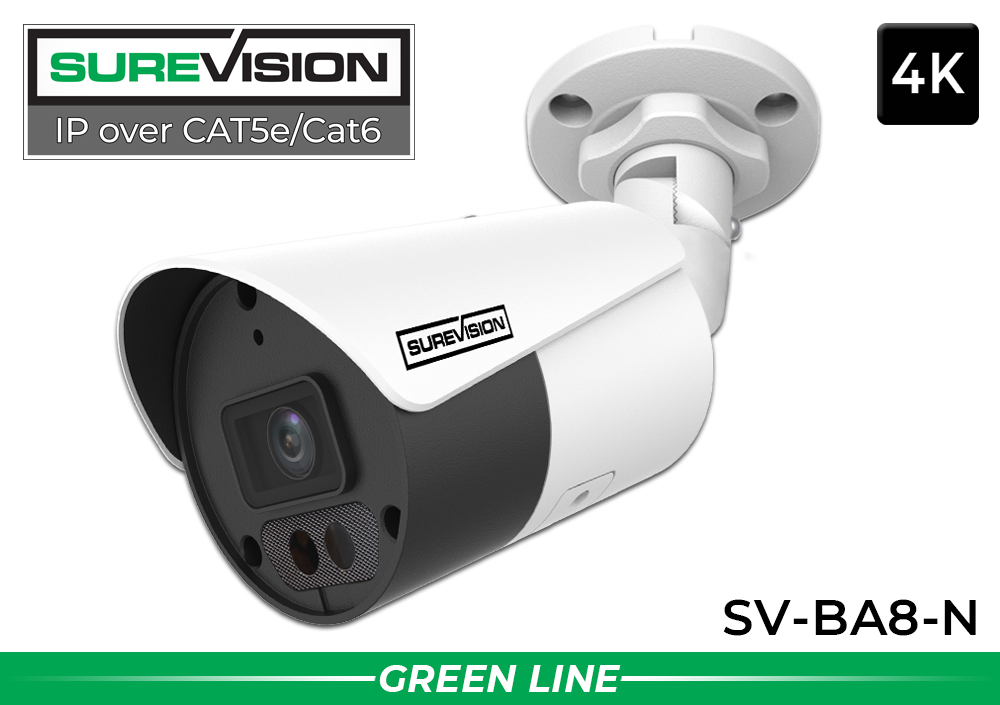

Superior High-Definition Surveillance with 8MP (4K) Infrared Bullet Cameras
Unleash the Power of Ultra HD Clarity and Night Vision
Experience the ultimate clarity and precision in your surveillance footage with our SureVision 8MP (4K) ultra high-definition infrared bullet cameras. These top-of-the-line cameras ensure that every detail is captured, delivering crystal clear images in any lighting conditions.
Featuring a 110-degree extra wide-angle lens and powerful night vision capabilities of up to 164ft, our infrared bullet cameras are designed to cover a wide area without compromising on quality. But that's not all - our cameras offer a range of advanced features to enhance your surveillance experience:
-
Built-in Microphone: Capture audio to complement your video recordings.
-
Color at Night Technology: Even in low light conditions, our cameras can display illuminated images, ensuring no detail goes unnoticed.
-
WDR (Wide Dynamic Range): Combat glare from intense lighting for clearer images.
-
H.265 Video Compression: Maximize video storage time with the latest high-efficiency video compression technology.
-
Ultra Motion Detection (UMD): AI-powered motion detection focuses specifically on humans and vehicles, eliminating unwanted alerts.
-
Instant Mobile Notifications: Receive real-time alerts on your smartphone or tablet, ensuring you never miss an important event.
Whether you're monitoring your property during the day or night, indoors or outdoors, our infrared bullet cameras provide you with superior surveillance capabilities that you can rely on.
Hassle-Free Installation and Outstanding Support
We've Got You Covered from Start to Finish
At CCTV Security Pros, we understand that setting up a security camera system might seem daunting. That's why we've made sure our IP camera systems are simple and easy to install. With every system, you'll receive a step-by-step installation guide to walk you through the process.
In addition to our user-friendly installation process, we provide exceptional customer support. Our live USA-based Technical Support is available Monday through Friday. If you have any questions or need assistance, simply call us at (888) 653-2288, and our team will be happy to help.

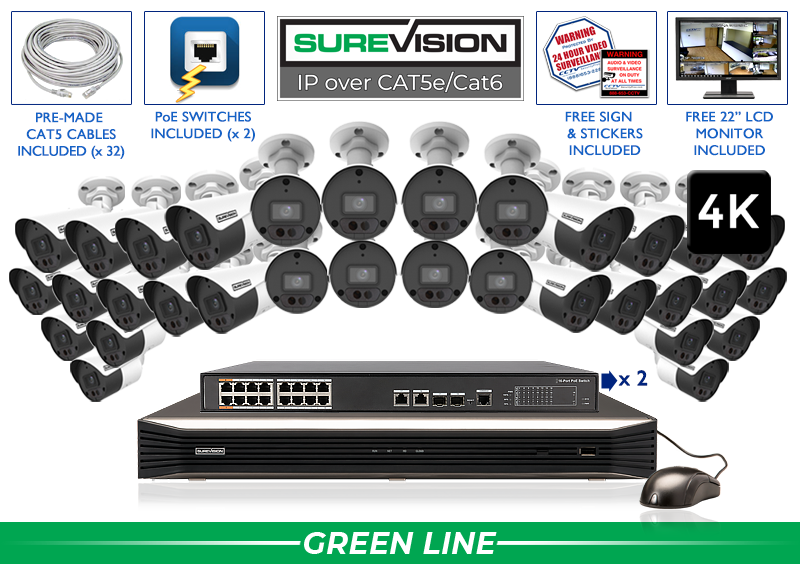

This Complete HD Security Camera System includes:
- (1) 32 Channel SUREVISION HD Network Video Recorder
- (1) 6 TB Surveillance Grade Hard Drive (installed)
- (32) 8MP (4K) IP Infrared Indoor/Outdoor Bullet Security Cameras with over 164 Foot Night Vision
- Starlight - low light performance
- (32) 100 Foot CAT5e Cables
- (2) 16 Port POE Switch
- High Definition LCD Monitor is INCLUDED
- Quick Start Guide
- Free Remote Viewing Software and Apps
- Video Surveillance Aluminum Sign
Camera Specifications:
Camera | ||||||||
Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | |||||||
Lens | 2.8mm@F1.6 | |||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
2.8 | 84.0 | 33.6 | 16.8 | 8.4 | ||||
Angle Of View (H) | 112.9° | |||||||
Angle Of View (V) | 59.1° | |||||||
Angle Of View (O) | 121.2° | |||||||
Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Minimum Illumination | Support Easystar: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR |
|||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
S/N | >56dB | |||||||
IR Range | Up to 50m (164ft) IR range | |||||||
Wavelength | 850nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Defog | Digital Defog | |||||||
WDR | 120dB | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||
Video Bit Rate | 128 Kbps~16 Mbps | |||||||
9:16 Corridor Mode | Supported | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Up to 8 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Image | ||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
Dewarping | N/A | |||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
Audio | ||||||||
Audio Compression | G.711 | |||||||
Suppression | Supported | |||||||
Sampling Rate | 8KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 256GB | |||||||
Network Storage | ANR, NAS(NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
Client | SVStation SVTools |
|||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | ||||||||
Interface | ||||||||
Network | 10/100M Base-TX Ethernet | |||||||
Built-in Mic | Supported | |||||||
Certifications | ||||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power consumption: Max 6.5W | ||||||||
Dimensions(L × W × H) | 190×73×71mm (7.5”×2.9”×2.8”) | |||||||
Net Weight | 0.45kg (0.99lb) | |||||||
Material | Metal | |||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 4KV | |||||||
Ingress Protection | IP67 | |||||||
Reset Button | Supported |

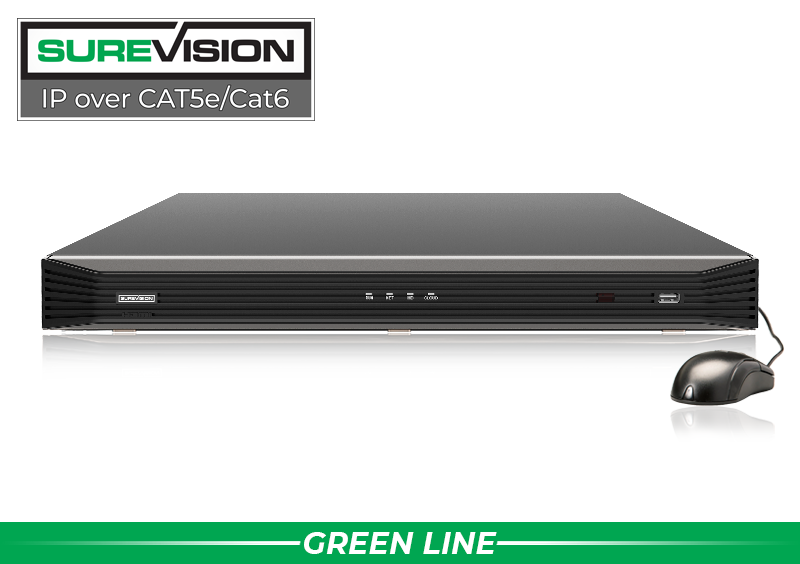

About our SUREVISION IP Camera Network Video Recorder:
Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.
SUREVISION "Green Line" Video Surveillance Recorder Highlights:
- Remote Viewing on PC, Cell Phone, and Tablet
- Industry Latest and Greatest
- Up to 4K Recording and Playback
- Motion 24/7 or on Motion Detection Mode
- Quick Start Guide Included for Easy Set Up
- 3 Year Warranty
- ONVIF Compliant
- Free Unlimited USA Support
Technical Specification | ||
---|---|---|
Video/Audio Input | ||
IP Video Input | 32-ch | |
Two-way Audio Input | 1-ch, RCA | |
Network | ||
Incoming Bandwidth | 320Mbps | |
Outgoing Bandwidth | 160Mbps | |
Remote Users | 128 | |
Protocols |
TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP;802.1x;IPV6 |
|
Browser |
Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
|
Video/Audio Output | ||
HDMI Output | 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
VGA Output |
VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Audio Output | 1-ch, RCA | |
Audio Compression | G.711A, G.711U | |
Synchronous Playback | 16-ch | |
Live View Display | 1/4/6/8/9/16/25/36 | |
Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |
Snapshot | ||
FTP/Schedule/Event Snapshot |
4‑ch snapshot, up to D1 resolution |
|
Decoding | ||
Decoding Format | Ultra 265, H.265, H.264 | |
Live View/Playback | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Capability |
Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 |
|
Hard Disk | ||
SATA | 4 SATA interfaces | |
Capacity | Up to 20TB for each disk (Seagate Skyhawk) (The maximum HDD capacity varies with environment temperature) |
|
eSATA | NA | |
Disk Group | Support | |
RAID | RAID 1,5 | |
Smart | ||
VCA Detection by Camera | Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring | |
VCA Search |
Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map |
|
People Counting | People Flow Counting, Crowd Density Monitoring | |
SmartbyIPC |
All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
|
General Alarm | ||
General Alarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection | |
Alert Alarm |
IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
|
External Interface | ||
Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |
USB Interface | Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0 | |
RS232 | NA | |
RS485 | 1 | |
Alarm In | 16-ch | |
Alarm Out | 4-ch | |
General | ||
Power Supply | 12V DC/5A Power Consumption: ≤ 20 W (without HDD) |
|
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
Dimensions (W×D×H) | 440mm × 344mm × 48mm (17.3" × 13.5"× 1.9") | |
Weight (without HDD) | ≤ 3.4Kg (7.50lb) | |
Certification | ||
Certification | CE, FCC, UL, RoHS, WEEE | |
CE |
EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
|
FCC | Part15 Subpart B |
NVR FEATURES
- 4K Ultra High Definition
- External POE Switch (Up to 32 Cameras)
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- 320 Mbps Incoming Bandwidth
- HDMI and VGA Display Output
- 4 Hard Drive Bays
CAMERA FEATURES
- 8 Megapixel IP Camera (3840×2160)
- 2.8mm Lens (110° Wide Angle View)
- Up to 164ft Infrared Night Vision
- Starlight - low light performance
- Built-in Microphone
- H.265 Video Compression
- Weatherproof - Indoor/Outdoor (IP67)
- Wide Dynamic Range - WDR (120dB)
- Power Over Ethernet - PoE
- Measurement: 7.5" L x 2.9" W x 2.8"
Identify (Up to 27ft)
Recognize (Up to 55ft)
Detect (Up to 275ft)
