Secure Your Peace of Mind with a SureVision Security Camera System
Exceptional Quality Meets Simplicity
Discover the pinnacle of video surveillance with our Vandal Dome IP System - a comprehensive package designed to safeguard your property effortlessly. With the SureVision NVR at the heart, setup becomes a breeze without compromising the sophistication you demand. Enjoy unparalleled features, including:
- 24/7 Recording: Never miss a moment with continuous surveillance.
- Motion Recording & Alerts: Stay informed with instant notifications on any device.
- Remote Viewing: View your cameras over the Internet and cell with no monthly fees.
- Powerful Audio Integration: Capture every sound, adding another layer to your security.
The inclusion of Power over Ethernet (PoE) simplifies installation, offering a plug and play solution that extends up to 800ft, ensuring comprehensive coverage of your premises.
Cutting-Edge Camera Technology

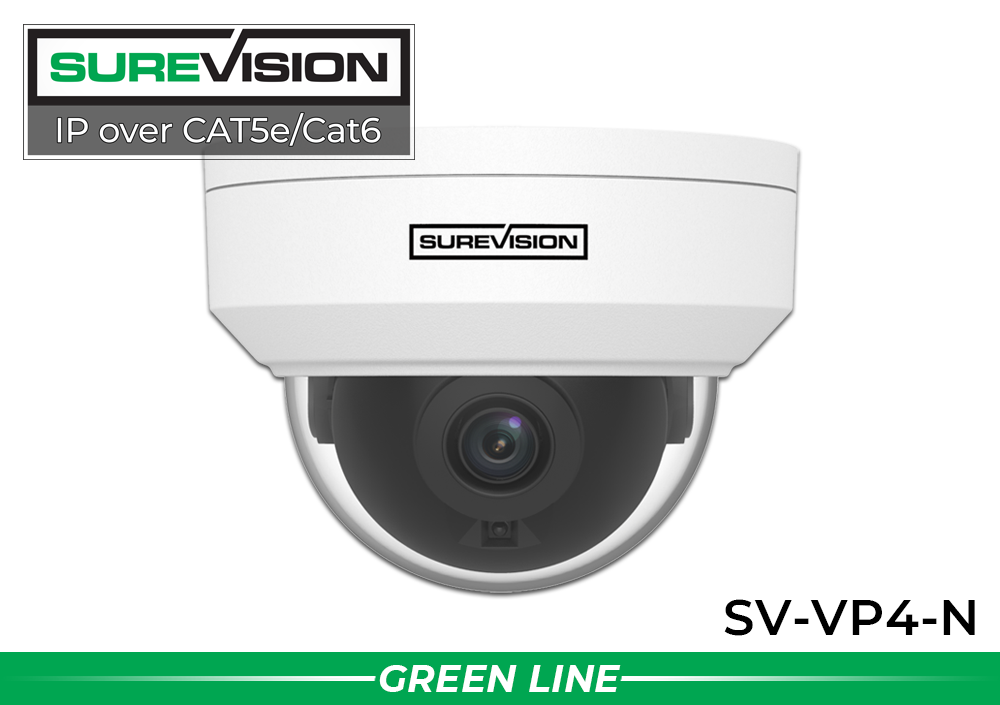

Elevate your security with our 4 Megapixel Infrared Vandal Dome Cameras. These units are meticulously crafted to blend in while providing extensive surveillance coverage, both indoors and outdoors. Features include:
- 110-Degree Wide-Angle Vision: Wide coverage with minimal blind spots.
- 100ft Night Vision: Darkness is no barrier to safeguarding your property.
- Vandal-Proof Design: Rest easy knowing your cameras resist tampering.
- AI-Powered Motion Detection: Receive alerts for human and vehicle movements, reducing false alarms.
This innovative technology ensures vivid recordings even in low-light conditions, thanks to color-at-night capabilities and WDR to counteract glare.
Installation & Support - A Seamless Experience
We've eliminated the complexity from securing your environment. Our package not only promises easy installation but also comes with a comprehensive 3-year warranty, free technical support from our USA-based team, and a 100% Money Back Guarantee for your absolute confidence.
- Simple Step-by-Step Guide: For hassle-free setup.
- Live USA-Based Support: We're here when you need us at (888) 653-2288.

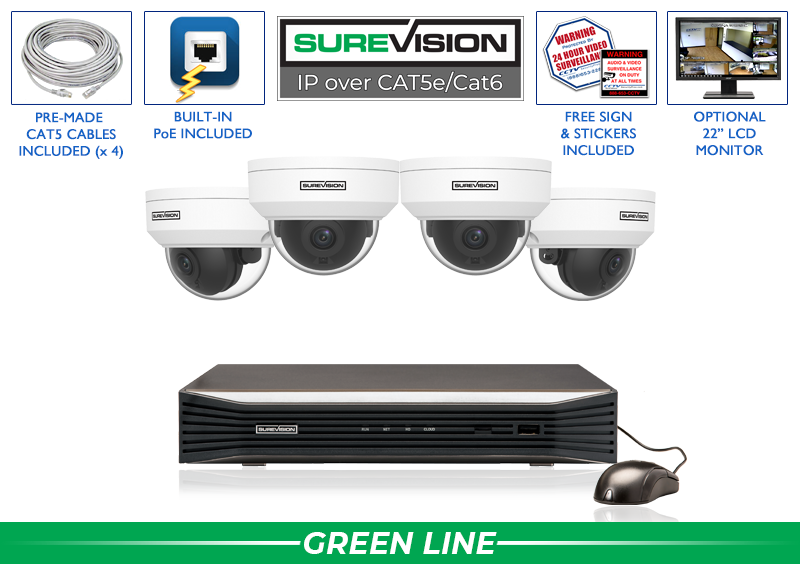

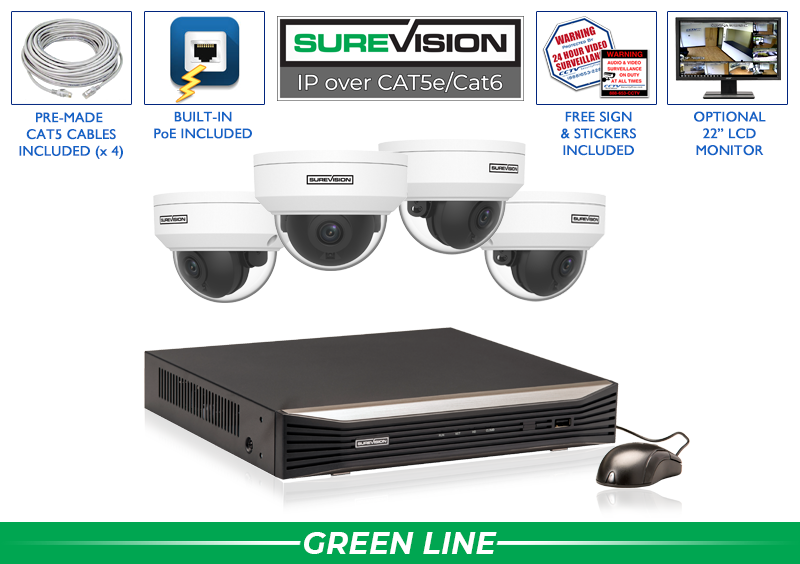

This Complete IP Security Camera System includes:
- (1) 8 Channel Network Video Recorder
- (1) 2 Terabyte Surveillance Grade Hard Drive (installed)
- (4) 4MP IP Vandal Dome Security Cameras with 100 Foot Night Vision
- (4) 100ft CAT5e Cables
- High Definition LCD Monitor is OPTIONAL
- Quick Start Guide
- Free Remote Viewing Software and Apps
- Video Surveillance Aluminum Sign
Camera Specifications:
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Camera | ||||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||||
| Lens | 2.8mm@F1.6 | |||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | ||||||
| Angle of view (H) | 101.1° | |||||||||
| Angle of View (V) | 55.3° | |||||||||
| Angle of View (O) | 111.1° | |||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 68° | Rotate: 0° ~ 360° | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||||
| Minimum Illumination | Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR |
|||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| S/N | >52dB | |||||||||
| IR Range | Up to 30m (98ft) IR range | |||||||||
| Wavelength | 850nm | |||||||||
| IR On/Off Control | Auto/Manual | |||||||||
| Defog | Digital Defog | |||||||||
| WDR | 120db | |||||||||
| Video | ||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 25fps |
|||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
| OSD | Up to 4 OSDs | |||||||||
| Privacy Mask | Up to 4 areas | |||||||||
| ROI | Up to 4 areas | |||||||||
| Motion Detection | Up to 4 areas | |||||||||
| Image | ||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| Smart IR | Support | |||||||||
| Flip | Normal/Vertical/Horizontal/180° | |||||||||
| Dewarping | N/A | |||||||||
| HLC | Supported | |||||||||
| BLC | Supported | |||||||||
| Network | ||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||||
| Client | SVStation SVTools |
|||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | ||||||||||
| Storage | ||||||||||
| Edge Storage | Micro SD, up to 256 GB | |||||||||
| Network Storage | ANR | |||||||||
| Interface | ||||||||||
| Network | 10/100M Base-TX Ethernet | |||||||||
| Certifications | ||||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||||||
| General | ||||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
| Power consumption: Max 5.5W | ||||||||||
| Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) | |||||||||
| Net Weight | 0.49kg (1.08lb) | |||||||||
| Material | Metal + Plastic | |||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Surge Protection | 4KV | |||||||||
| Ingress Protection | IP67 | |||||||||
| Vandal Resistant | IK10 | |||||||||

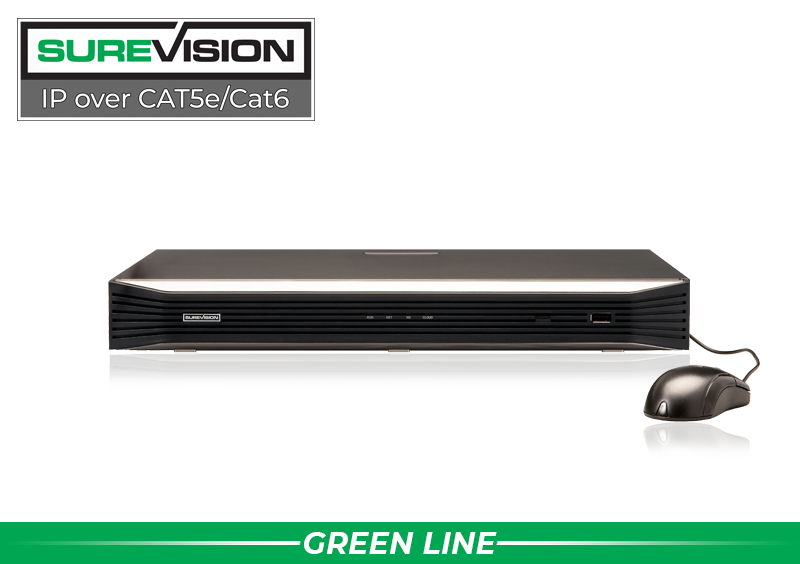

About our SUREVISION IP Camera Network Video Recorder:
Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.
| Technical Specification | ||
|---|---|---|
| Video/Audio Input | ||
| IP Video Input | 8-ch | |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 320Mbps | |
| Outgoing Bandwidth | 160Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6 | |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
| Video/Audio Output | ||
| HDMI/VGA Output |
HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 |
|
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Audio Compression | G.711A, G.711U | |
| Synchronous Playback | 8-ch | |
| Live View Display | 1/4/6/8/9 | |
| Corridor Mode Screen | 3/4/5/7/9 | |
| Snapshot | ||
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | |
| Decoding | ||
| Decoding Format | Ultra 265, H.265, H.264 | |
| Live View/Playback | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 | |
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | up to 20TB for each HDD | |
| eSATA | NA | |
| Disk Group | Support | |
| Smart | ||
| VCA Detection by Camera | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring | |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report | |
| People Counting | People Flow Counting, Crowd Density Monitoring | |
| Smart Intrusion Prevention (SIP), Vehicle Detection by Camera | Total 8-ch | |
| General Alarm | ||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |
| USB Interface | Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0 | |
| RS232 | NA | |
| RS485 | 1 | |
| Alarm In | 8-ch | |
| Alarm Out | 2-ch | |
| PoE | ||
| Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface | |
| Max Power | Max 30W for single port Max 130W in total |
|
| Supported Standard | IEEE 802.3af/at | |
| General | ||
| Power Supply | 100~240V AC Power Consumption: ≤ 20W (without HDD) |
|
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1") | |
| Weight (without HDD) | ≤2.6Kg (5.73lb) | |
| Certification | ||
| Certification | CE, FCC, UL, RoHS, WEEE | |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |
| FCC | Part15 Subpart B | |
NVR FEATURES
*Free Upgrade to 8ch Recorder!
- 4K Ultra High Definition
- 8 PoE Camera Inputs
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- 320 Mbps Incoming Bandwidth
- HDMI and VGA Display Output
- 2 Hard Drive Bays
SECURITY CAMERA FEATURES
- 4 Megapixel IP Camera (2688×1520)
- 2.8mm Lens (110° Wide Angle View)
- Up to 100ft Infrared Night Vision
- Starlight - low light performance
- H.265 Video Compression
- Weatherproof, Vandalproof (IP67, IK10)
- Wide Dynamic Range (120dB)
- Power Over Ethernet - PoE
- Measurement: 3.2" H x 4.3" D
Approximate Distances:
Identify (Up to 21ft)
Recognize (Up to 41ft)
Detect (Up to 207ft)
