4 Camera Surveillance System - 4MP Vandal Dome IP System - 8 Channel Network Video Recorder / 4IPVP4-B-N

$1,437.49 after 20% promo after 20% promo $1,149.99
(You save $287.50)
Model: SV-4IPVP4-B-N
Security Camera System

Select your options:

superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100
Ask a question

SureVision Camera Features Video

SureVision NVR Features Video














Unmatched Security Camera System with SureVision

Protect What Matters Most

When it comes to safeguarding your home or business, settling for anything less than the best can leave you vulnerable. The SureVision Security Camera System offers unparalleled protection with its 4 Megapixel Infrared Vandal Dome Cameras and state-of-the-art NVR. Designed for both indoor and outdoor use, the low-profile dome cameras are discreet yet powerful, offering a wide-angle view with exceptional night vision up to 100ft. Their vandal-proof design ensures reliable surveillance even in areas within easy reach.

Advanced Technology for Peace of Mind

The heart of this security system is the SureVision NVR, engineered for simplicity and high performance. Equipped with 24/7 recording, motion alerts, and mobile access, you can stay connected to your property from anywhere in the world. The NVR’s built-in PoE allows for straightforward plug-and-play setup, and with extended PoE, cabling can reach over 800ft, ensuring optimal placement of each camera. Advanced features like color at night technology and WDR combat low light conditions and glare, providing you with clear, illuminated images when you need them most.

Customer-Centric Features and Support

Your investment in the SureVision Security Camera System comes with added peace of mind through a comprehensive 3 Year Warranty, Free USA Technical Support, and a 100% Money Back Guarantee. Installation is made easy with a step-by-step guide, and live support is just a phone call away, ensuring you have help whenever you need it. Fully NDAA compliant, this system meets the standards required for government facilities and federally funded projects, making it a trustworthy option for all your security needs.

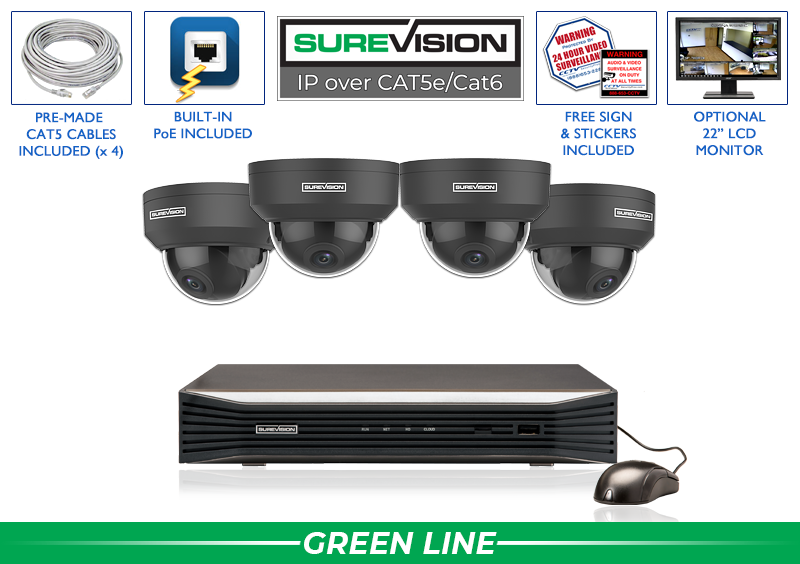

This Complete Security Camera System includes:

  • (1) 8 Channel Network Video Recorder
  • (1) 2 Terabyte Surveillance Grade Hard Drive (installed)
  • (4) 4MP IP Infrared Indoor/Outdoor Vandal Dome Security Cameras with 100 Foot Night Vision
  • (4) 100ft CAT5e Cables
  • High Definition LCD Monitor is OPTIONAL
  • Quick Start Guide
  • Free Remote Viewing Software and Apps
  • Video Surveillance Aluminum Sign home-run-version-1-.png

Security Camera Specifications:

Technical Specification
Camera
Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3

Angle of view (H) 101.1°
Angle of View (V) 55.3°
Angle of View (O) 111.1°
Adjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >56dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client SVStation
SVTools
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Interface
Network 10/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max5.5W
Dimensions (Ø x H) Φ109 x 81mm (Ø4.3” x 3.2”)
Net Weight 0.35kg (0.77lb)
Material Metal + Plastic
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Ingress Protection IP67
Vandal Resistant IK10
Reset Button N/A



About our SureVision Network Video Recorder:

Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.




Technical Specification
Video/Audio Input
IP Video Input 8-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 160Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output

HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60

VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Recording Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 8-ch
Live View Display 1/4/6/8/9
Corridor Mode Screen 3/4/5/7/9
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Decoding
Decoding Format Ultra 265, H.265, H.264
Live View/Playback 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Hard Disk
SATA 2 SATA interfaces
Capacity up to 20TB for each HDD
eSATA NA
Disk Group Support
Smart
VCA Detection by Camera Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera Total 8-ch
General Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS232 NA
RS485 1
Alarm In 8-ch
Alarm Out 2-ch
PoE
Interface 8 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 130W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 100~240V AC
Power Consumption: ≤ 20W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
Weight (without HDD) ≤2.6Kg (5.73lb)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B





NETWORK RECORDER FEATURES
*Free Upgrade to 8ch Recorder!
  • 4K Ultra High Definition
  • 8 PoE Camera Inputs
  • Remote Viewing – No Monthly Fees
  • H.265 High Video Compression
  • 320 Mbps Incoming Bandwidth
  • HDMI and VGA Display Output
  • 2 Hard Drive Bays
IP CAMERA FEATURES
  • 4 Megapixel IP Camera (2688×1520)
  • 2.8mm Lens (110° Wide Angle View)
  • Up to 100ft Infrared Night Vision
  • Starlight - low light performance
  • H.265 Video Compression
  • Weatherproof, Vandalproof (IP67, IK10)
  • Wide Dynamic Range (120dB)
  • Power Over Ethernet - PoE
  • Measurement: 3.2" H x 4.3" D

Approximate Distances:
Identify (Up to 21ft)
Recognize (Up to 41ft)
Detect (Up to 207ft)
