This is video monitoring at its best. This is SureVision.

This complete system package comes with our industry leading SureVision NVR. This professional grade NVR unit was designed to be simple and easy to setup while offering unmatched quality, function and reliability. The NVR comes equipped with all of the latest features such as 24/7 recording, motion recording, object masking, mobile alerts, audio and much more. You can easily view and receive instant motion alerts from your cameras remotely on any smartphone, tablet or computer using our free software and mobile apps. Built-in PoE (power over ethernet) makes this unit ideal for simple plug and play setup. All SureVision NVR units have extended PoE allowing you to cable over 800ft away! You can expect the very best surveillance for your business or home with this top of the line NVR.

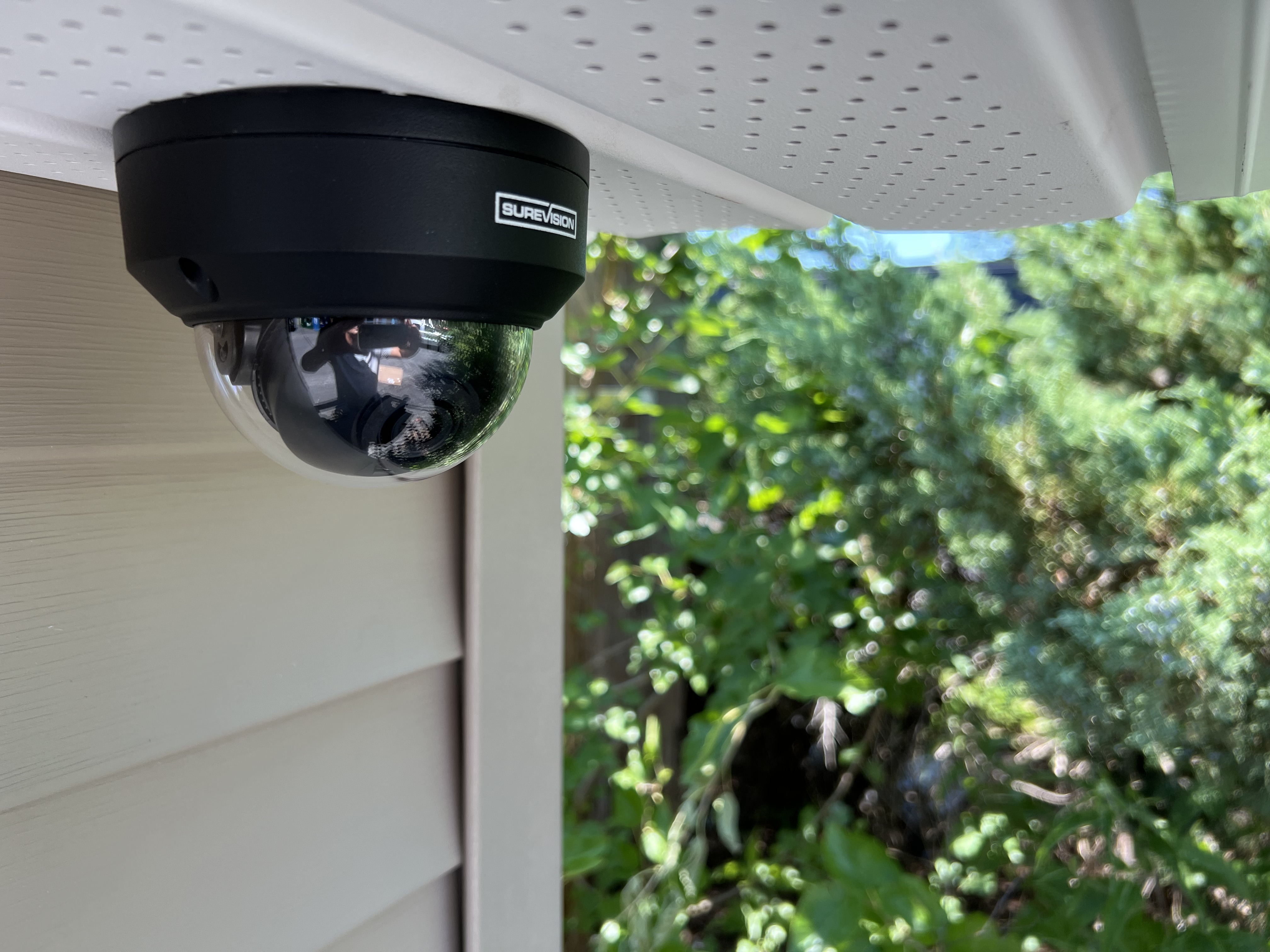

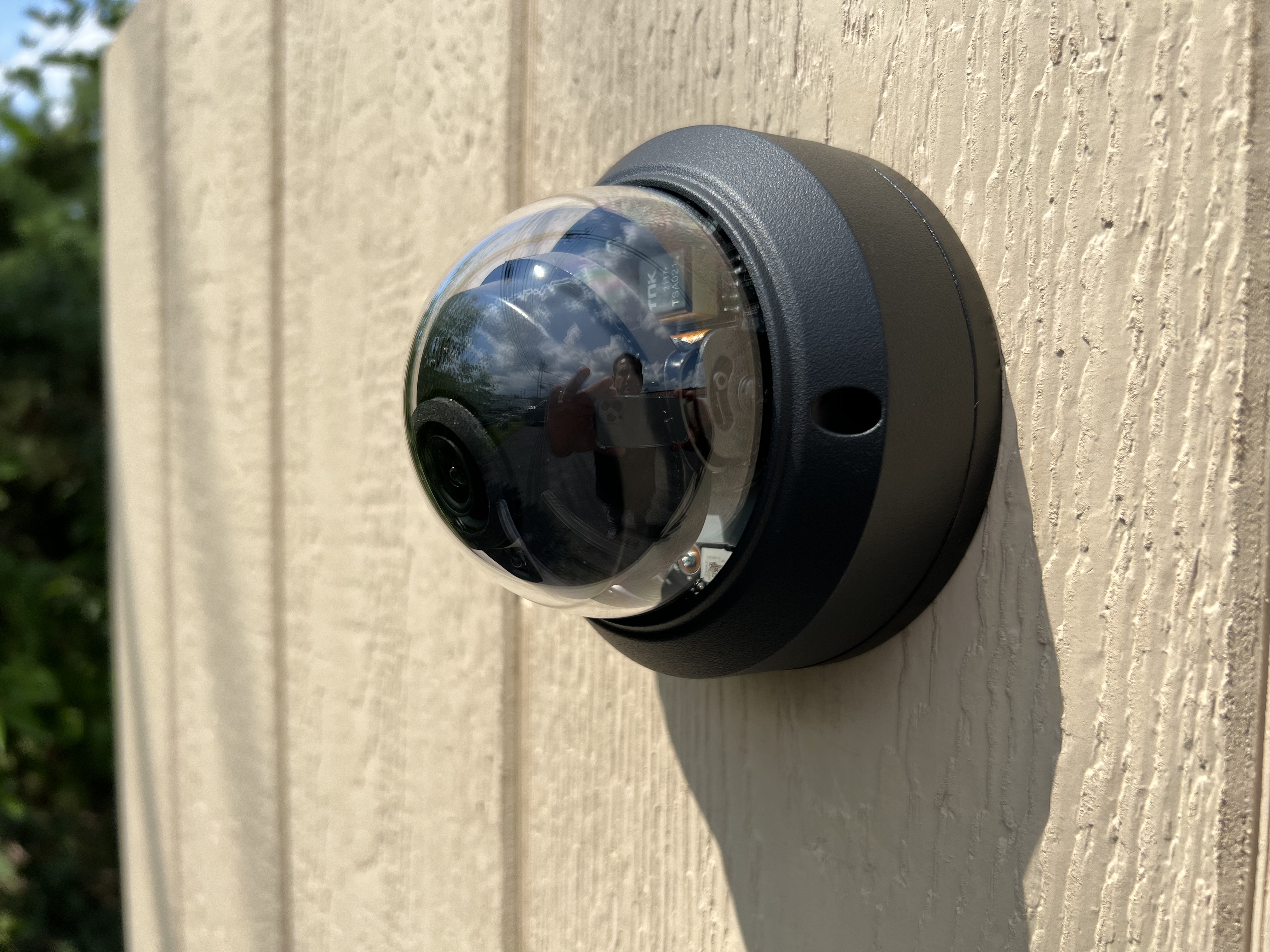

This complete security camera system package includes our SureVision 4 megapixel infrared vandal dome style camera with fixed 110 degree wide-angle lens and powerful night vision of up to 100ft. Many customers prefer dome cameras for use both indoor and outdoor due to their low profile design and discreet look. Dome cameras are also optimal when mounting low or within human reach since their vandal-proof design makes them difficult to be tampered with. Our professional-grade dome has a 3-axis lens meaning that it can be mounted to a ceiling or wall. This camera leverages the latest color at night technology to display illuminated images in low light conditions. Other advanced features of this camera include WDR used to combat any glare from intense lighting as well as the latest H.265 high video compression technology for extended video storage time. What makes this camera extra special is an AI feature called Ultra Motion Detection (UMD) that focuses specifically on humans and/or vehicles to produce the most accurate motion alerts – while eliminating any unwanted alerts! These notifications can instantly be sent to your smartphone or tablet so you never miss an important event. This popular high definition dome camera will provide you with excellent wide-angle coverage for use in any application where superior video quality is a must.

This Complete High Definition IP Security Camera System comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.

Installation of our IP camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.

*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects

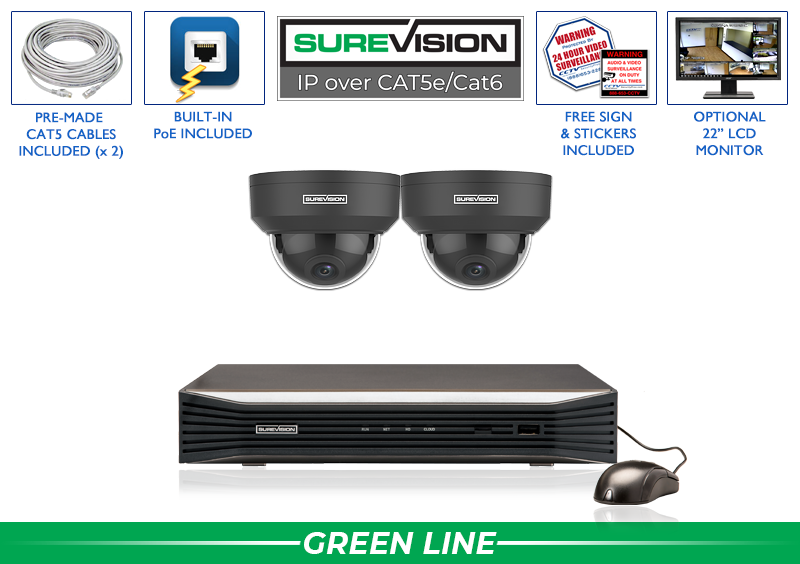

This Complete HD Security Camera System includes:

(1) 8 Channel SUREVISION HD Network Video Recorder
(1) 2 Terabyte Surveillance Grade Hard Drive (installed)
(2) 4MP IP Infrared Indoor/Outdoor Vandal Dome Security Cameras with 100 Foot Night Vision
(2) 100ft CAT5e Cables
High Definition LCD Monitor is OPTIONAL
Quick Start Guide
Free Remote Viewing Software and Apps
Video Surveillance Aluminum Sign

Security Camera Specifications:

Technical Specification
Camera
Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F1.6
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.8	63		25.2	12.6		6.3

Angle of view (H)	101.1°
Angle of View (V)	55.3°
Angle of View (O)	111.1°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 68°			Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	120db
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 4MP (26881520), Max 25fps; 4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 2MP (19201080), Max 30fps; Sub Stream: 720P (1280*720), Max 25fps
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 4 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°
Dewarping	N/A
HLC	Supported
BLC	Supported
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	SVStation SVTools
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Web Browser	Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Interface
Network	10/100M Base-TX Ethernet
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
Power	Power consumption: Max 5.5W
Dimensions (Ø x H)	Φ109 x 81mm (Ø4.3” x 3.2”)
Net Weight	0.49kg (1.08lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
Ingress Protection	IP67
Vandal Resistant	IK10

About the Network Video Recorder:

Features:

Support Ultra 265/H.265/H.264 video formats
4-channel input
Plug & Play with 4 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
1 SATA HDD up to 10 TB
Support cloud upgrade

TECHNICAL SPECIFICATIONS
Video/Audio Input
IP Video Input	4-ch
Audio Input	1-ch, RCA
Network
Incoming Bandwidth	80Mbps
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output	HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Two-way Audio	1-ch, RCA(Using the audio input and output)
Audio Compression	G.711A, G.711U
Synchronous Playback	4-ch
Liveview display	1/4
Corridor Mode Screen	3/4
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot, up to D1 resolution
Decoding
Decoding format	Ultra 265/H.265
Live view/Playback	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30
Hard Disk
SATA	1 SATA interfaces
Capacity	Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
Smart
VCA Detection by Camera	Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD(Smart Motion Detection)
VCA Search	Behavior Search, People Counting Report
People counting	People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), SMD by Camera	Total 4-ch
General Alarm
General Alarm	Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface	1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface	Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
RS232	NA
RS485	NA
Alarm In	NA
Alarm Out	NA
PoE
Interface	4 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port Max 50W in total
Supported Standard	IEEE 802.3af/at
General
Power Supply	48V DC/1.35A Power Consumption: ≤ 10W (without HDD)
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	260mm × 222mm × 47mm (10.2" × 8.7" × 1.8")
Weight (without HDD)	≤ 0.98Kg (2.16lb)

NVR FEATURES

4K Ultra High Definition
4 PoE Camera Inputs
Remote Viewing – No Monthly Fees
H.265 High Video Compression
80 Mbps Incoming Bandwidth
HDMI and VGA Display Output
1 Hard Drive Bay

CAMERA FEATURES

4 Megapixel IP Camera (2688×1520)
2.8mm Lens (110° Wide Angle View)
Up to 100ft Infrared Night Vision
Starlight - low light performance
H.265 Video Compression
Weatherproof - Indoor/Outdoor(IP67, IK10)
Wide Dynamic Range (120dB)
Power Over Ethernet - PoE
Measurement: 3.2" H x 4.3" D

Approximate Distances:
Identify (Up to 21ft)
Recognize (Up to 41ft)
Detect (Up to 207ft)
