Superior Surveillance Performance

Welcome to the world of enhanced security with our Security Camera System with 16 Cameras and 4K IP NVR by SureVision. Bringing you professional-grade quality, function, and reliability, this package is designed keeping in mind the growing demand for advanced surveillance systems. Our NVR boasts of the newest features like round-the-clock recording, mobile alerts, and motion recording. Whether you want to monitor your home or business, this system ensures that you are always watchful, always secure and always at peace.

Outstanding Camera Quality

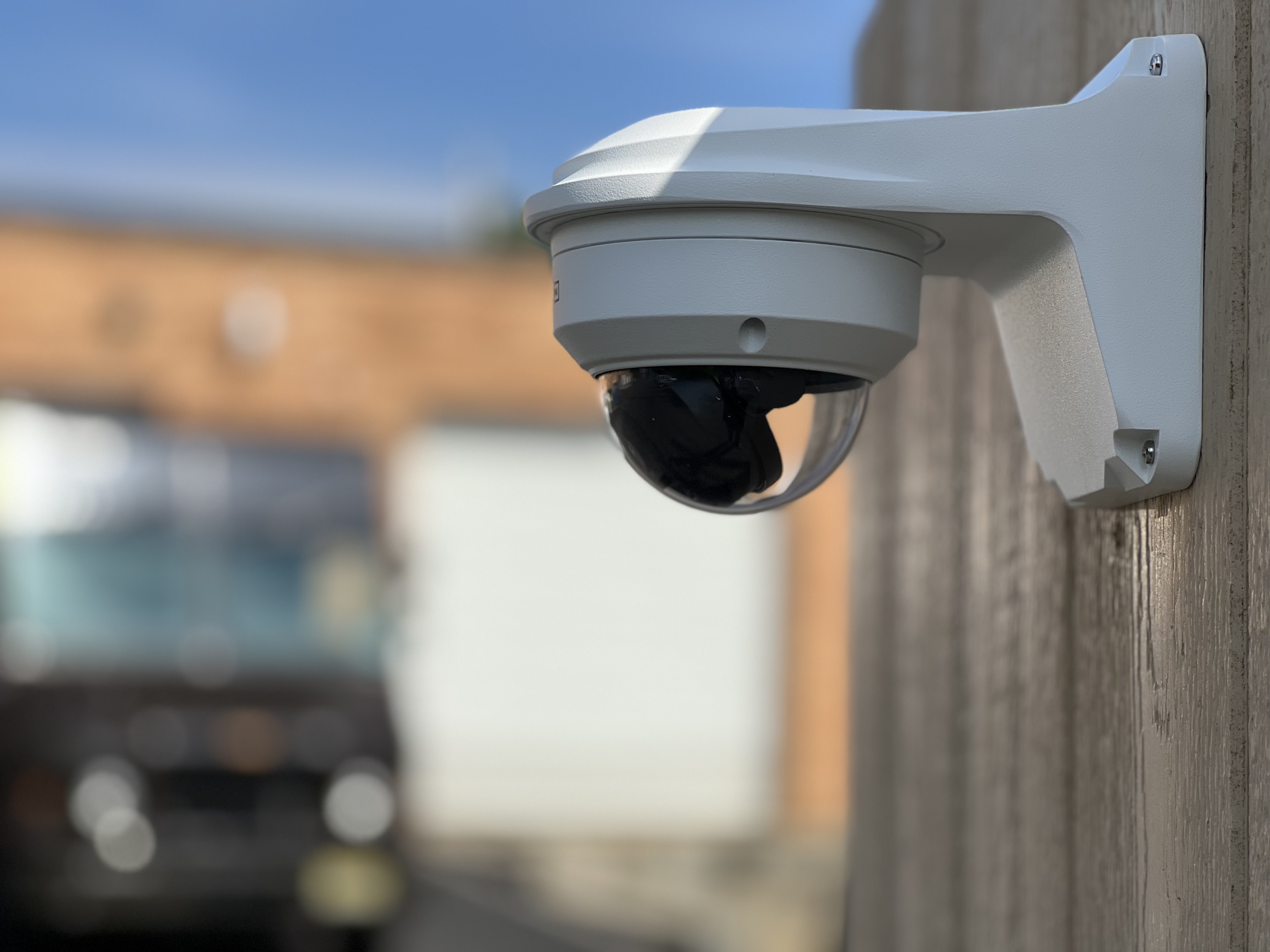

The comprehensive security package includes our award-winning SureVision 8 megapixel ultra-high-definition camera. This vandal dome camera brings you the best of surveillance technology with a fixed 110-degree extra wide-angle lens and a robust night vision range of up to 100ft. No more worrying about low light areas, as our camera uses the latest color at night technology to illuminate dark areas for clear visibility. The Ultra Motion Detection (UMD) feature is armed to detect motion by humans or vehicles accurately, eliminating unwanted alerts and providing you with pertinent notifications on your phone.

User-friendly and Easy to Install

Our complete security system comes with all necessary components needed for installation. Installation of our IP camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.

*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects

This Complete HD Security Camera System includes:

(1) 16 Channel SureVision 4K Network Video Recorder
(1) 4TB Surveillance Grade Hard Drive (installed)
(16) 4K IP Infrared Indoor/Outdoor Vandal Dome Security Cameras with 100 Foot Night Vision
(16) 100 Foot CAT5e Cable
High Definition LCD Monitor is INCLUDED
Quick Start Guide
Free Remote Viewing Software and Apps
Video Surveillance Aluminum Sign

Security Camera Specifications:

Technical Specification
Camera
Sensor	1/3", 8.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	2.8mm	84		33.6	16.8		8.4

Angle of View (H)	112.7°
Angle of View (V)	60.1°
Angle of View (D)	146.5°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~68°			Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.05 Lux (F2.0, AGC ON) 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>56dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline Profile, Main Profile
Frame Rate	Main Stream:8MP (38402160): Max. 20 fps; 5MP (25921944): Max. 30 fps; 5MP(29441656): Max. 30 fps; 4MP(25601440): Max. 30 fps; 2MP(19201080): Max. 30 fps Sub Stream:720P (1280720): Max. 20 fps Third Stream:D1 (720*576): Max. 20 fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
Interface
Network	10/100M Base-TX Ethernet
Built-In Mic	Supported
General
Power	DC12V±25%, PoE (IEEE802.3 af)
Power	Power consumption: Max 4.5w
Dimensions (Ø x H)	Φ108.7 x 83mm (Ø4.3" x 3.3")
Weight	0.37kg (0.82lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10

About our SUREVISION IP Camera Network Video Recorder:

Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.

SUREVISION "Green Line" Video Surveillance Recorder Highlights:

Remote Viewing on PC, Cell Phone, and Tablet
Industry Latest and Greatest
Up to 4K Recording and Playback
Motion 24/7 or on Motion Detection Mode
Quick Start Guide Included for Easy Set Up
3 Year Warranty
ONVIF Compliant
Free Unlimited USA Support

Technical Specification
Video/Audio Input
IP Video Input	16-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	320Mbps
Outgoing Bandwidth	160Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output	HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Recording Resolution	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Synchronous Playback	16-ch
Live View Display	1/4/6/8/9/16
Corridor Mode Screen	3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot, up to D1 resolution
Decoding
Decoding Format	Ultra 265, H.265, H.264
Live View/Playback	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Hard Disk
SATA	2 SATA interfaces
Capacity	up to 20TB for each HDD
eSATA	NA
Disk Group	Support
Smart
VCA Detection by Camera	Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting	People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera	Total 8-ch
General Alarm
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface	1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface	Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS232	NA
RS485	1
Alarm In	8-ch
Alarm Out	2-ch
PoE
Interface	16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port Max 240W in total
Supported Standard	IEEE 802.3af/at
General
Power Supply	100~240V AC Power Consumption: ≤ 20W (without HDD)
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
Weight (without HDD)	≤2.6Kg (5.73lb)
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

4K NVR FEATURES

4K Ultra High Definition
16 PoE Camera Inputs
Remote Viewing – No Monthly Fees
H.265 High Video Compression
320 Mbps Incoming Bandwidth
HDMI and VGA Display Output
2 Hard Drive Bays

4K CAMERA FEATURES

8 Megapixel IP Camera (3840×2160)
2.8mm Lens (110° Wide Angle View)
Up to 100ft Infrared Night Vision
Starlight - low light performance
Built-in Microphone
H.265 Video Compression
Weatherproof, Vandalproof (IP67, IK10)
Wide Dynamic Range (120dB)
Power Over Ethernet - PoE
Measurement: 3.2" H x 4.3" D

Approximate Distances:
Identify (Up to 28ft)
Recognize (Up to 56ft)
Detect (Up to 276ft)
