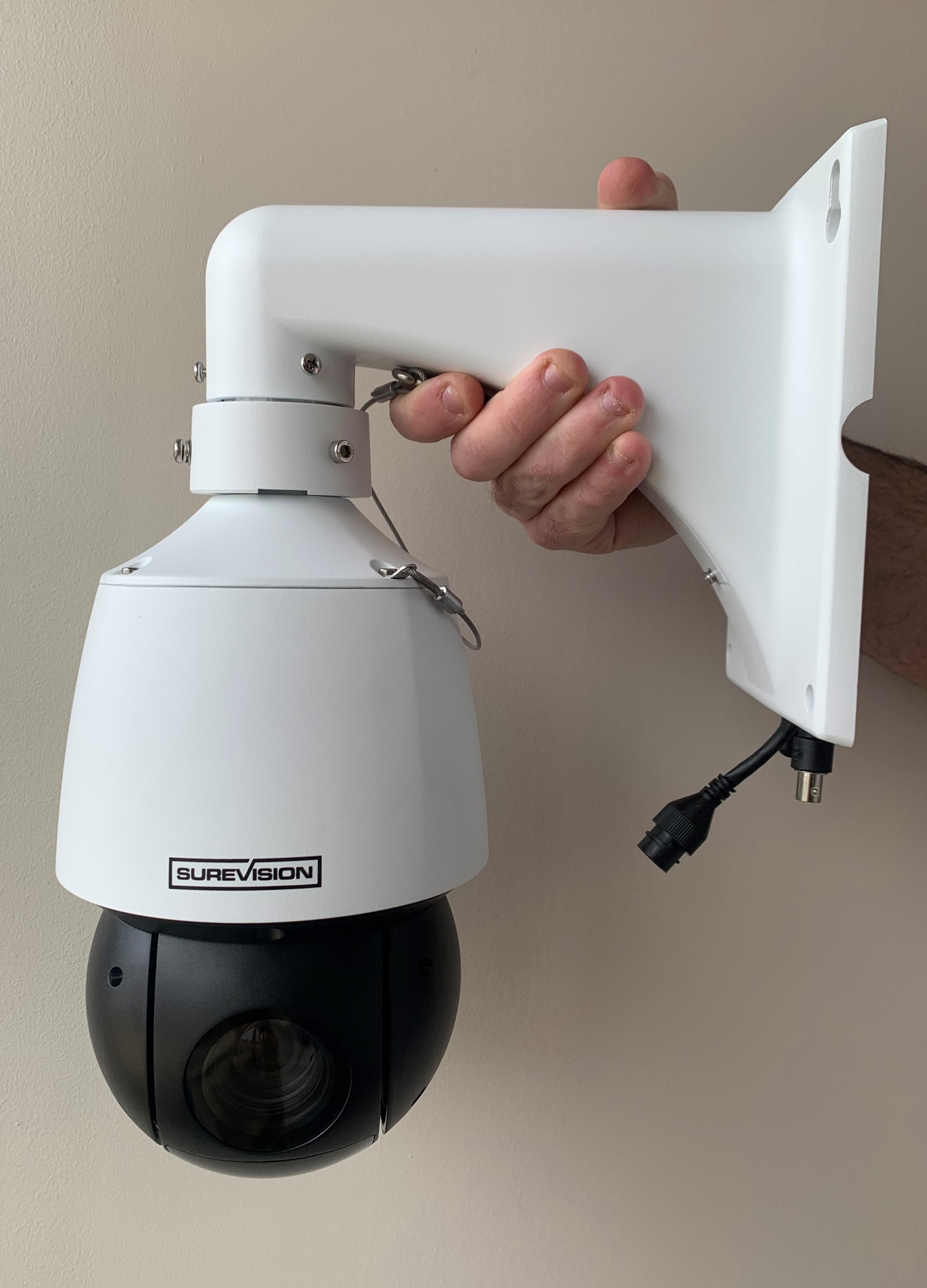

Pan Tilt Zoom Security Camera with Auto Tracking

Professional Surveillance Pan Tilt Zoom Camera Performance

SureVision Pan Tilt Zoom Security Camera with Auto-tracking – Engineered for unparalleled clarity and oversight, this PTZ Camera gives you the ability to meticulously monitor your surroundings. It is equipped with a sophisticated 4.8-120mm lens, providing variable zoom options to ensure no detail is too small or too distant. The camera's durable design facilitates a full 360-degree rotation and tilt capability, affording extensive surveillance coverage.

Expansive Viewing Range: Seamlessly modify your view, focusing on either intricate details or wide areas.

Auto Tracking: This impressive new function allows the PTZ camera to automatically follow movement, simplifying your monitoring tasks.

Customizable Control: Over 1000 preset positions are available to secure exact camera orientations as needed.

Superior Night Vision Features: Gain confidence with the SureVision PTZ Security Camera's exceptional night vision. It is crafted to excel in dim settings, illuminating spaces as far as 328 feet. The property remains protected under the cloak of darkness, with night visibility as clear as daylight- all thanks to the sophisticated infrared technology employed.

Extended Night Visibility: Light up far-away elements even in pitch-black conditions.

Round-the-Clock 24/7 Monitoring: Maintain consistently sharp images throughout the day and night.

Uncompromised PTZ Usability and Accessibility: Monitor your areas of interest from any device including smartphones, tablets, and PCs. The robust makeup of the camera, certified to IP67 and IK10 standards, assures resistance to severe weather conditions and potential vandal activities, making it a steadfast solution for any location.

Compatibility Across Devices: Effortlessly keep an eye on your surroundings using the built in PTZ control feature on your NVR, cell phone, tablet, or PC.

Use Indoor or Outdoor: Built to be weather-resistant and vandal resistant, ensuring lasting performance.

*Always use SureVision cameras with SureVision NVR units for full-featured use and functionality.

• 4MP 1/2.8’’ CMOS sensor
• 2688*1520@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• 25X Optical Zoom
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 100m (328ft) IR distance
• DC 12V±25% or PoE+ (IEEE 802.3at)
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP67 ingress protection
• IK10 vandal resistant

Looking for a complete IP camera system? Click Here to check out our "Green Line" Series IP Security Camera Systems.

Looking for a network video recorder for this camera? Click Here to check out our compatible "Green Line" Network Video Recorders.

Looking for a complete IP camera system?

Check out our Green Line Series
IP Security Camera Systems.

SHOP NOW

Looking for a network video recorder for this camera?

Check out our compatible
Green Line Network
Video Recorders.

SHOP NOW

TECHNICAL SPECIFICATIONS
PTZ Security Camera
Sensor	1/2.8", 4.0 megapixel, progressive scan, CMOS
Min. Illumination	Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
WDR	120dB
S/N	>56dB
Lens
Lens type	4.8 ~ 120mm, AF automatic focusing and motorized zoom lens
Digital Zoom	16
Optical Zoom	25
Iris	Auto; F1.5 ~ F3.8
Angle of View (H)	52.20°~2.74°
Angle of View (V)	30.81°~1.54°
Angle of View (O)	64.20°~3.23°
DORI
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	4.8	119.3(391.2ft)	47.7(156.5ft)	23.9(78.2ft)	11.9(39.1ft)
	120	2475.0(8120.1ft)	990.0(3248.0ft)	495.0(1624.0ft)	247.5(812.0ft)
Illuminator
IR Range	Up to 100m (328 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 4MP(26881520),Max 30fps; Sub Stream: 2MP (19201080), Max 30fps; Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	24 areas, up to 4 areas per scene
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC	Support
BLC	Support
Defog	Digital Defog
Events
Basic Detection	Motion detection, Audio detection, Tampering Alarm
Auto Tracking	Support
General Function	Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711U,G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR,NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZLive EZView
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Pan & Tilt
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 200°/s
Pan Speed	Preset speed: 240°/s
Tilt Range	–15° ~ 90° (auto reverse)
Tilt Speed	0.1°/s ~ 120°/s
Tilt Speed	Preset speed: 200°/s
Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Patrol Stay Time	15s~1800s
Preset Image Freeze	Support
Home Position	Support
Interface
Audio I/O	1/1
Alarm I/O	2/1
Serial Port	1 RS485
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 * RJ45 10M/100M Base-TX Ethernet
Video Output	1 BNC
Certification
EMC	FCC Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013
Safety	IEC 62368-1 EN 62368-1 UL 60950-1
Environment	CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
General
Power	DC12V(±25%,3A), PoE+(IEEE 802.3at)
Power	Power consumption: MAX 21W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions (Ø x H)	Ø166 x 295mm (Ø6.5” x 11.6”)
Weight	3.05kg(6.72lb)
Working Environment	-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)
Storage Environment	-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)
Surge Protection	6KV
Reset Button	Support
Protection	Ingression protection: IP67 Vandal resistant: IK10

PTZ CAMERA FEATURES

4 Megapixel IP Camera (2688×1520)
4.0-120mm Motorized Lens - 25X Optical Zoom
Up to 328ft Infrared Night Vision
Starlight - low light performance
H.265 Video Compression
Weatherproof, Vandalproof (IP67, IK10)
Wide Dynamic Range (120dB)
Measurement: 11.6" H x 6.6" D

Approximate Distances:
Identify (Up to 812ft)
Recognize (Up to 1,624ft)
Detect (Up to 8,120ft)
