Comprehensive 32-Camera Security System for Ultimate Protection

Advanced Surveillance Technology at Your Fingertips

Our 32-camera IP network video recording system offers top-tier security for your home or business. With 2MP resolution cameras and a powerful NVR, you'll have crystal-clear footage day and night. The system's user-friendly design makes it easy to set up and monitor, giving you peace of mind 24/7.

Vandal-Proof Dome Cameras for Reliable Coverage

These sturdy dome cameras are built to withstand tampering, making them ideal for both indoor and outdoor use. With a wide 110-degree angle lens and night vision up to 100 feet, you'll capture every detail in your surroundings. The discreet design blends seamlessly into any environment, providing security without being obtrusive.

Smart Features for Enhanced Protection

Our system goes beyond basic recording with intelligent features like Ultra Motion Detection (UMD). This AI-powered technology focuses on humans and vehicles, sending accurate alerts to your smartphone or tablet. You'll stay informed of important events without being bothered by false alarms.

Easy Setup and Remote Access

Installing this system is straightforward, with a step-by-step guide included. Once set up, you can easily view footage and receive alerts on any device using our free software and mobile apps. With extended PoE capabilities, you can place cameras up to 800 feet away from the NVR, offering flexible coverage options.

This Complete HD Security Camera System includes:

(1) 32 Channel SUREVISION HD Network Video Recorder
(1) 6 Terabyte Surveillance Grade Hard Drive (installed)
(32) 2MP IP Infrared Indoor/Outdoor Vandal Dome Security Cameras with over 100 Foot Night Vision
(32) 100ft CAT5e Cables
(2) 16 Port POE Switch
High Definition LCD Monitor is INCLUDED
Quick Start Guide
Free Remote Viewing Software and Apps
Video Surveillance Aluminum Sign

Camera Specifications:

Technical Specification
Camera
Sensor	1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
DORI Distance	2.8	42.0		16.8	8.4		4.2
Angle of view (H)	101.1°
Angle of View (V)	55.3°
Angle of View (O)	111.1°
Adjustment angle	Pan: 3° ~ 360°		Tilt: 0° ~ 68°			Rotate: 3° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.01Lux ( F2.0 AGC ON) 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	120dB
Video/Audio
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640*360,Max 30fps;
Video Bit Rate	128 Kbps~6144 kpbs
9:16 Corridor Mode	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Built-in Mic	Supported
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Supported
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	N/A
HLC	Supported
BLC	Supported
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	SVStation SVTools
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Web Browser	Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Storage
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR,NAS(NFS)
Interface
Network	10/100M Base-TX Ethernet
Certifications
Certifications	CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) FCC: (FCC 47 CFR part15 B)
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
Power	Power consumption: Max5.0W
Dimensions (Ø x H)	Φ109 x 83mm (Ø4.3” x 3.3”)
Net Weight	0.36kg (0.79lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
Ingress Protection	IP67
Vandal Resistant	IK10
Reset Button	N/A

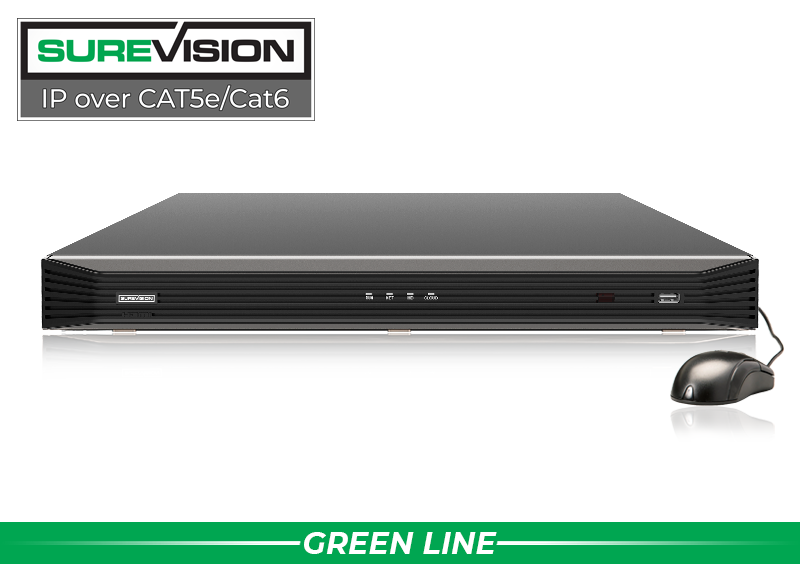

About our SUREVISION IP Camera Network Video Recorder:

Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.

SUREVISION "Green Line" Video Surveillance Recorder Highlights:

Remote Viewing on PC, Cell Phone, and Tablet
Industry Latest and Greatest
Up to 4K Recording and Playback
Motion 24/7 or on Motion Detection Mode
Quick Start Guide Included for Easy Set Up
3 Year Warranty
ONVIF Compliant
Free Unlimited USA Support

Technical Specification
Video/Audio Input
IP Video Input	32-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	320Mbps
Outgoing Bandwidth	160Mbps
Remote Users	128
Protocols	TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP;802.1x;IPV6
Browser	Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/Audio Output
HDMI Output	4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output	VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Synchronous Playback	16-ch
Live View Display	1/4/6/8/9/16/25/36
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event Snapshot	4‑ch snapshot, up to D1 resolution
Decoding
Decoding Format	Ultra 265, H.265, H.264
Live View/Playback	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Hard Disk
SATA	4 SATA interfaces
Capacity	Up to 20TB for each disk (Seagate Skyhawk) (The maximum HDD capacity varies with environment temperature)
eSATA	NA
Disk Group	Support
RAID	RAID 1,5
Smart
VCA Detection by Camera	Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring
VCA Search	Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map
People Counting	People Flow Counting, Crowd Density Monitoring
SmartbyIPC	All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
General Alarm
General Alarm	Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
Alert Alarm	IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
External Interface
Network Interface	2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface	Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0
RS232	NA
RS485	1
Alarm In	16-ch
Alarm Out	4-ch
General
Power Supply	12V DC/5A Power Consumption: ≤ 20 W (without HDD)
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	440mm × 344mm × 48mm (17.3" × 13.5"× 1.9")
Weight (without HDD)	≤ 3.4Kg (7.50lb)
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B
