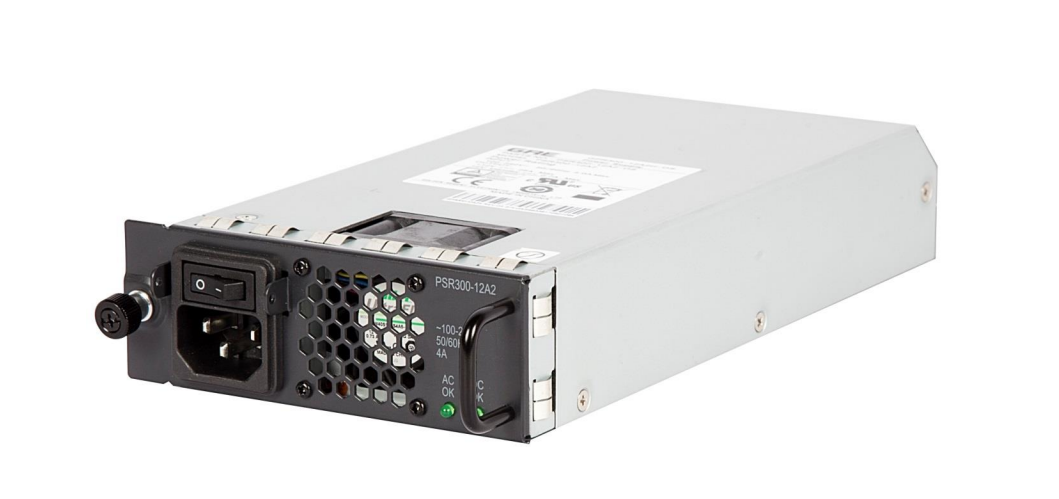

Redundant Power Supply for SV-NVR128-N & SV-NVR64-N
- Protection against short circuit, overload & overvoltage
- Front panel indicator lights alert to normal and abnormal conditions
- Meets regulatory standards: UL, TUV, CE
| AC Voltage | 90 ~ 264VAC |
| Frequency | 47~63 Hz |
| Power factor | ≥0.95 |
| Input current | ≤4 A |
| Input protection | Input under voltage or over voltage |
| DC Output | |
| Voltage / Electricity | +12VDC/25A，+12Vsb/1A |
| Source Regulation | ±1% |
| Load Regulation | ±3% |
| Stabilized Voltage Precision | ±5% |
| Output Power | 312W max |
| Output Protection | Output short circuit, over current & over voltage protection |
| General | |
| Indicator Light | Normal: Green “On”; Abnormal: Green “Off” |
| Working Temperature | 0 ~ 55℃ |
| Storage Temperature | -40 ~ 70℃ |
| Heat Dissipation | Fan draft design |
| Dimension (D×H×W) | 234.9 × 40.13 × 101.6mm |
| Conformity Standards | |
| EMC | EN55022, EN55024 |
| NEBS | GR-63-CORE ISSUE 2 |
| Safety | IEC60950-1, GB4943-2001 |
| Approvals | UL, TUV, CE |
