Automatic thermal temperature measurement and screeening system

Thermal Body Temperature Screening System

Thermal body temperature screening systems are deployed to detect above-average temperature, a potential symptom of COVID-19 coronavirus infection. The ability to flag potential causes of cases is critical to protecting your business, employees, and customers. This mass fever screening system provides reliable temperature screening and can help your operation return to normal.

Key Features

Real-time automated screening of up to 10 people at once
Outstanding temperature accuracy within 0.3° Celsius (0.54° Fahrenheit)
Automatically captures and archives images when the embedded alarm is triggered
Longer distance, large scenes can also be accurately and quickly screened
Blackbody to determine baseline temperature with an accuracy of ≤0.3℃
Simultaneous temperature display of visible and infrared thermal imaging
Automatic calibration of body and surface temperature
Historical alarm record data

The whole system is delivered together with everything you need, including tripod, software, etc.

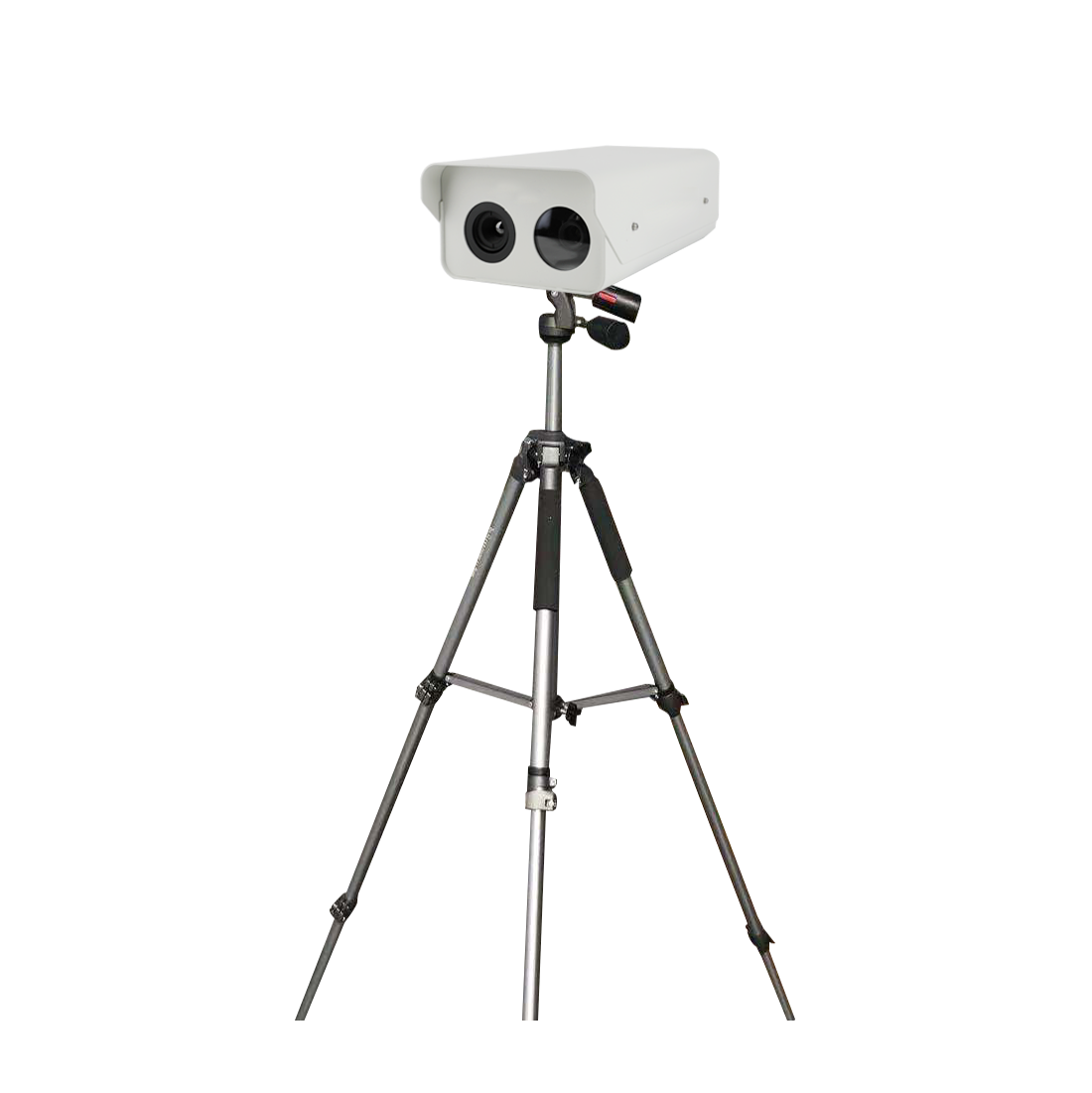

A Professional Thermal Camera Temperature Screening Solution

At CCTV Security Pros, we recognize the extra efforts that businesses are taking to ensure safe operations. We’re now bringing you a professional-grade thermal camera for body temperature monitoring with superior features to accurately screen individuals and secure your entrances. Enjoy automatic thermal temperature measurement and screening.

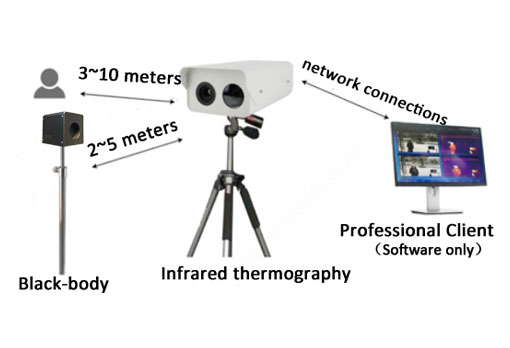

Our industry-leading solution is now available in Fahrenheit setting for USA-based applications. Simply position your thermal camera, calibrate it with the black box, download the user-friendly software on your PC, and you’re ready to go. Our mass fever screening system comes with a range of premium features to ensure smooth operation and reliable temperature screening.

Order Online 24/7

If you’re planning to buy a professional mass fever screening system for your business or other commercial space, place your order at CCTV Security Pros. Our product quality is among the industry’s best. The screening system is easy to set up and use. Place your order now to enjoy a 20% discount on temperature screening devices.

Product Specification
ITEM	CSP-600
Thermal
Sensor type	Uncooled Focal Plane Arrays
Pixel size	25μm
Maximum image size	384*288
Video frame rate	Max 25fps
NETD	≤60mk
Response waveband	8~14μm
Focal length	18mm
Iris	F1.0
Angle of View (H*V)	25°*19°
Detection distance	3~10 meters
Visible
Sensor	1/1.8"，progressive scan，CMOS
Focus	Manual
Iris	Max F1.6
Minimum illumination	Colour : 0.001Lux(F1.6, AGC ON) B/W : 0.0002Lux(F1.6, AGC ON)
S/N	＞52dB
Defog	Optical & digital
Day/Night	IR-cut filter with auto switch (ICR)
Video Frame rate	1920*1080, Max 30fps
WDR	120dB
OSD	Up to 8 OSDs
SD card	Micro SD, up to 256GB
ANR	Support
Network protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Focal length	3.8~16mm
Blackbody
Accuracy	±0.2℃（Single point
Stability	±(0.1~0.2)℃/30min
Dimension	135mm x 135mm x150mm
Power	220V AC 50Hz
220V AC 50Hz	60W
Radiation area	φ70mm
General
Temperature measurement accuracy
Environment temperature range	16°C~32°C
Target temperature range	32°C~42°C
Temperature measurement accuracy	≤±0.3℃
Interface
Infrared machine head	Aviation plug
Network interfaces	RJ45
Power
Power	DC12V
Power consumption	≤15W
Weight
Infrared machine head	<5Kg
Blackbody	<3.5kg
Function
Function	Multi abnormal temperature point alarm and automatic capture
Capture	Capture when alarm is triggered
Temperature display	Simultaneous display of temperature in infrared and visible light images
Correction of body and surface temperature	Support automatic temperature calibration
Environmental adaptability
Working humidity	≤90%RH(non-condensing)
Notes
PC requirement	CPU I5 or more / memory 8G. Operating system win10, 64-bit.If you have a laptop, you must have a network port.
